8 dipole, 10 dBd, bi-directional, HD, 380-460 MHz
8 dipole, 10 dBd, bi-directional, HD, 380-460 MHz

SD318-HF1P2SNM(D00S)

8 dipole, 10 dBd, bi-directional, HD, 380-460 MHz

Regular price $0.00
/

Only 0 items in stock!
• 8-bay dipole antenna covering entire 380-460 MHz frequency range
• 10 dBd gain with bi-directional pattern
• Heavy duty wind rating, and 150 W power handling
• Side mount
Electrical
average input power max 150
connector N-Male
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range 380 to 460
gain nominal 10
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

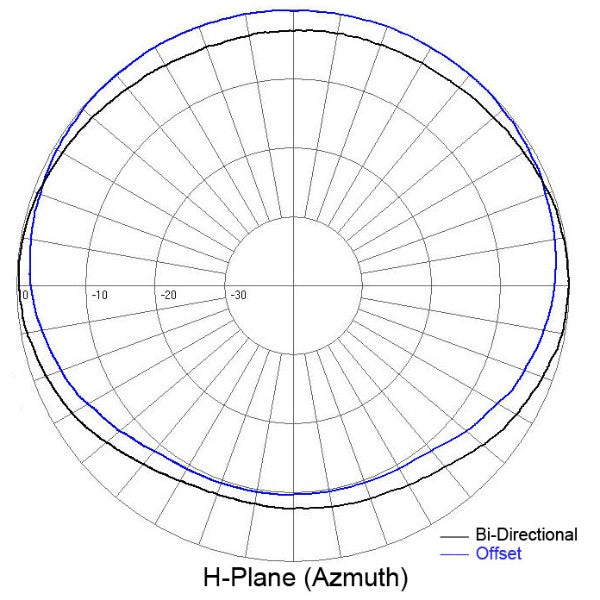

pattern Bi-directional
polarization vertical
vertical beamwidth typ 8
Mechanical
actual shipping weight 85
base pipe diameter 2.375
base pipe material aluminum
base pipe mounting length 48
depth 3.5
length height 204
mounting configurations side mount
mounting hardware optional Clamp005, Clamp015, Clamp130, or Clamp125U
radiating element material aluminum
shipping dimensions 209x6x20
width 16
Environmental
bending moment 100 mph no ice 632
lateral thrust 100 mph no ice 144
rated wind velocity no ice 160
survival wind velocity no ice 110
temperature range -40 to 60
