8 dipole, 10 dBd, offset, low PIM, HD, null fill, LS, 406-470 MHz
8 dipole, 10 dBd, offset, low PIM, HD, null fill, LS, 406-470 MHz
8 dipole, 10 dBd, offset, low PIM, HD, null fill, LS, 406-470 MHz
8 dipole, 10 dBd, offset, low PIM, HD, null fill, LS, 406-470 MHz

SD318-HF2P4LDF(DXXB-NUF-LS)

8 dipole, 10 dBd, offset, low PIM, HD, null fill, LS, 406-470 MHz

$0.00
/
Only 0 items in stock!

• 10 dBd gain with offset pattern Heavy duty wind ratings, 300 W power handling Industry-leading -150 dBc PIM rating and null fill 0, 2, 4, 6, 8, or 10 degrees electrical downtilt available10 degrees electrical downtilt available

Electrical
average input power max (W) 300
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range (MHz) 406 to 470
front to back ratio typ 9
gain nominal (dBd) 10
horizontal beamwidth typ 190
impedance (Ω) 50
lightning protection Lightning spike

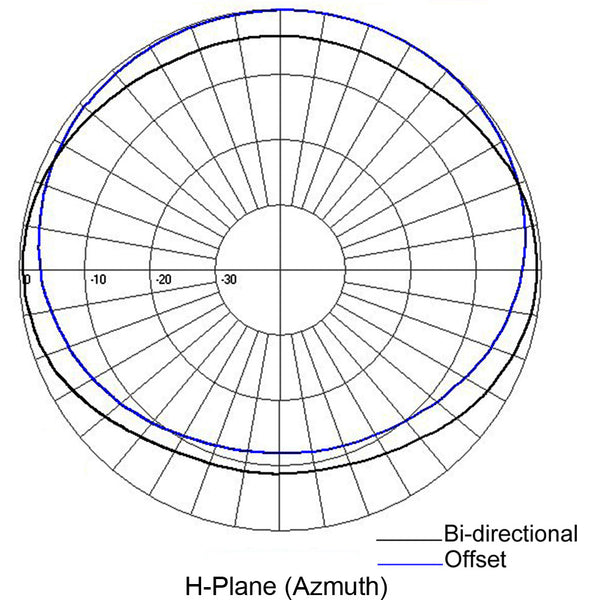

pattern Offset
polarization vertical
Mechanical
actual shipping weight (lbs) 85
base pipe diameter 2.38
base pipe mounting length 120
depth (in) 3.5
length height (in) 252
mounting configurations Bottom mount
shipping dimensions (in) 247x6x14
Width (in) 12.4
Environmental
bending moment 100 mph no ice 550
lateral thrust 100 mph no ice 144
rated wind velocity no ice 150
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 1.2
