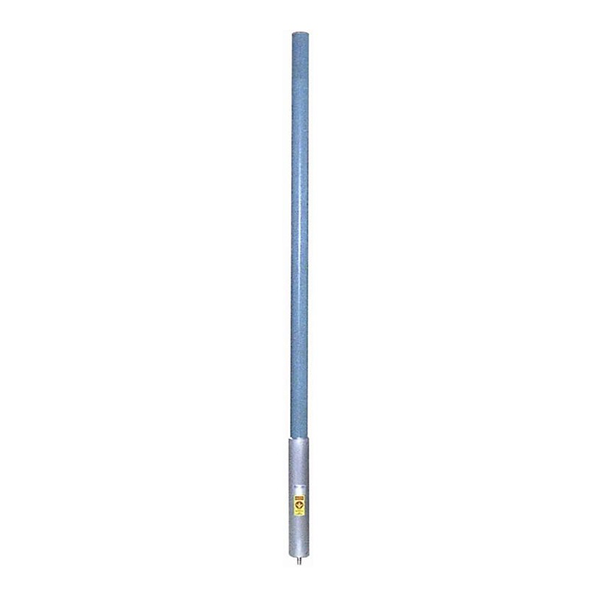

Aurora™ collinear omni antenna, 4 dBd, HD, low PIM, PIP-rated, 380-430 MHz
Aurora™ collinear omni antenna, 4 dBd, HD, low PIM, PIP-rated, 380-430 MHz

SC364-HF1LDF(DXX-PIP)

Aurora™ collinear omni antenna, 4 dBd, HD, low PIM, PIP-rated, 380-430 MHz

Regular price $0.00
/

Only 0 items in stock!
• Patent-pending Aurora™ balanced design for exceptional performance
• Outstanding bandwidth with highly stable RF performance across the whole band
• -150dBc PIM rating for low noise characteristics, ideal for wideband or trunking systems
• Light-weight, heavy-duty antenna with outstanding wind rating for long life and reliability
Electrical
average input power max (W) 500
bandwidth (MHz) 50
frequency range (MHz) 380 to 430
gain nominal (dBd) 4
grounding All metal parts DC-grounded
impedance (Ω) 50
lightning protection DC ground
pattern Omni-directional
polarization Vertical
Mechanical
base pipe mounting length 3.5
depth (in) 3.5
estimated shipping weight (lbs) 46
length height (in) 91.6
mounting configurations Upright, inverted
radome material Fiberglass (UV protected)
shipping dimensions (in) 102 x 6 x 6
width (in) 3.5
Environmental
bending moment 100 mph no ice 137
lateral thrust 100 mph no ice 53
rated wind velocity no ice 270
temperature range (°C) -40 to +60
tip deflection 100 mph no ice 0.2
