SC6185-E5108

Aviation band, HD, 3 dBi, 3' pig tail, Bird cap, Gel coat, 225-400 MHz

Regular price $0.00
/

Only 0 items in stock!
• Ideal for severe weather conditions at airports
• 3 pigtail, bird cap and gel coated
• 100 Watt power handling
Electrical
average input power max 100
bandwidth 175
connector N-Male
electrical tilt available 06-Feb
frequency range 225 to 400
gain nominal 0.9
input vswr max 2:01
lightning protection DC ground

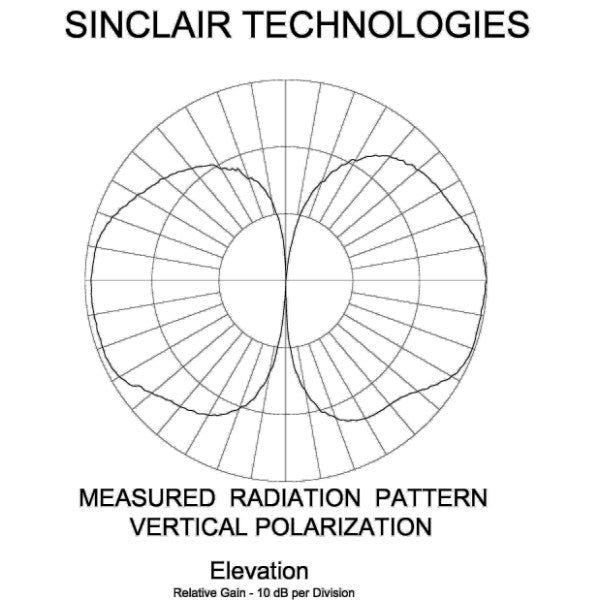

pattern Omni-directional
polarization vertical
vertical beamwidth typ 30
Mechanical
actual shipping weight 36
base pipe diameter 4
base pipe material aluminum
base pipe mounting length 10
depth 4
length 76
radiating element material aluminum
radome material fiberglass (UV protected)
shipping dimensions 90x6x6
width 4
Environmental
bending moment 100 mph no ice 144
lateral thrust 100 mph no ice 47
rated wind velocity no ice 275
survival wind velocity no ice 305
temperature range -40 to 60
tip deflection 100 mph no ice 0.1
