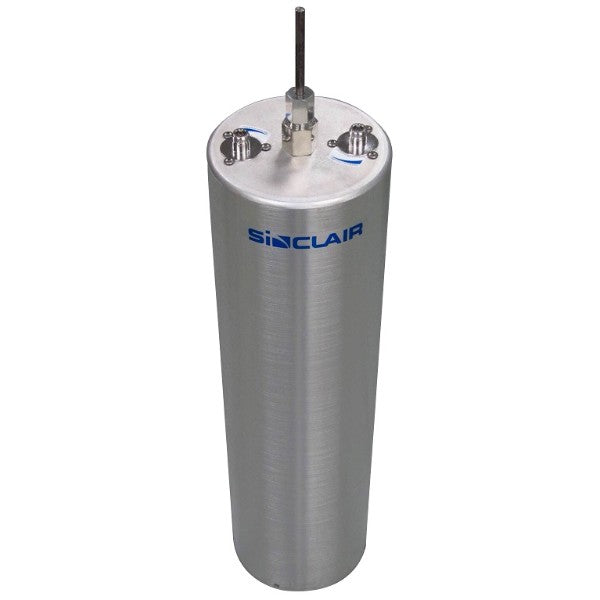

Cavity filter, bandpass, high Q, one 7" cavity, 132-150 MHz
Cavity filter, bandpass, high Q, one 7" cavity, 132-150 MHz

FP20107-2

Cavity filter, bandpass, high Q, one 7" cavity, 132-150 MHz

Regular price $0.00
/

Only 0 items in stock!
• Aluminum cylinder with brass and copper coaxial inner conductor
• Silver plating and chromate conversion coating limit corrosion and enhance performance
• Temperature compensated for extremely low frequency drift
Electrical
average input power max 90 to 400
average input power max (W) 90 to 400
frequency range 132 to 150
impedance 50
input connectors N-Female
insertion loss min 0.5
insertion loss min (dB) 0.5
output connectors N-Female
Mechanical
actual shipping weight 15
actual shipping weight (lbs) 15
depth 7
length height 35
length height (in) 35
shipping dimensions 9x9x38
width 7
Environmental
temperature range -40 to 60
