Cavity filter, reject, high Q, one 7" cavity, 108-136 MHz
Cavity filter, reject, high Q, one 7" cavity, 108-136 MHz

FR20107-1

Cavity filter, reject, high Q, one 7" cavity, 108-136 MHz

Regular price $0.00
/

Only 0 items in stock!

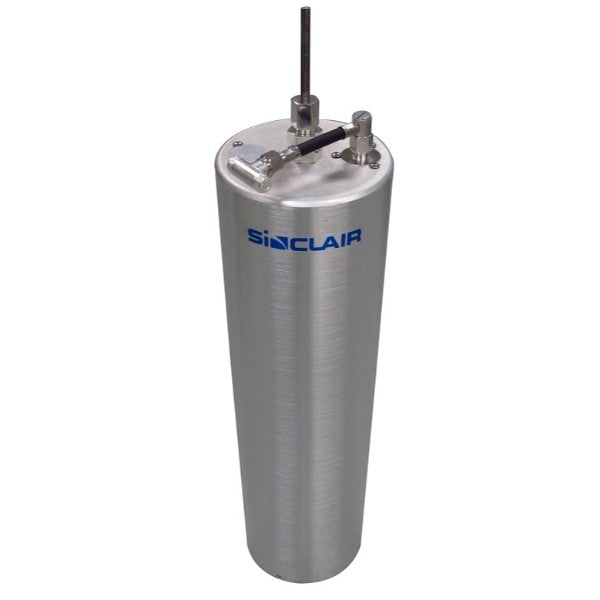

• 7 inch diameter aluminum cylinder with brass and copper coaxial inner conductor
• Silver plating and chromate conversion coating, limit corrosion and enhance performance
• Temperature compensated for extremely low frequency drift
Electrical
average input power max (W) 400
frequency range (MHz) 108 to 136
impedance (Ω) 50
input connectors N-Female
notch attenuation (max) (dB) 25
notch attenuation (max) (dB) 25
notch attenuation max 25
notch attenuation max (dB) 25
output connectors N-Female
Mechanical
actual shipping weight (lbs) 20
depth (in) 7
finish chromate conversion
length height (in) 43.75
shipping dimensions (in) 48x9x9
Width (in) 7
Environmental
temperature range (°C) -40 to 60
