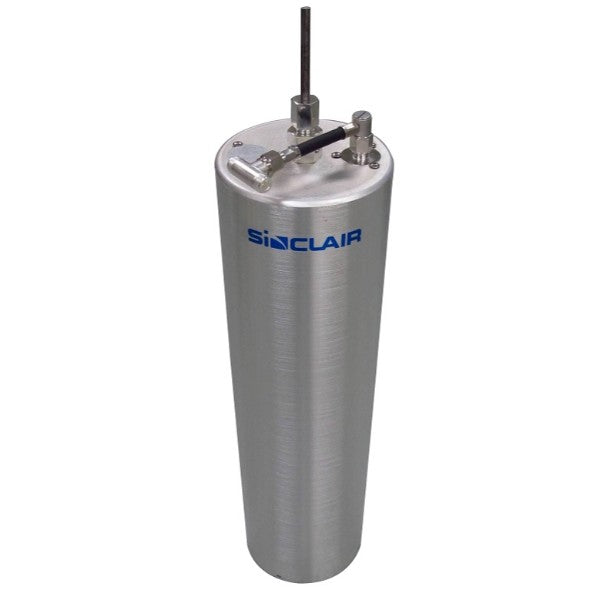

Cavity filter, reject, high Q, one 7" cavity, 132-150 MHz
Cavity filter, reject, high Q, one 7" cavity, 132-150 MHz

FR20107-2

Cavity filter, reject, high Q, one 7" cavity, 132-150 MHz

Regular price $0.00
/

Only 0 items in stock!
• 7 inch diameter aluminum cylinder with brass and copper coaxial inner conductor
• Silver plating and chromate conversion coating limit corrosion and enhance performance
• Temperature compensated for extremely low frequency drift
Electrical
average input power max 400
frequency range 132 to 150
impedance 50
input connectors N-Female
input vswr max 1.5 : 1
notch attenuation max 25
output connectors N-Female
Mechanical
actual shipping weight 15
depth 7
finish chromate conversion
length height 35
shipping dimensions 39x9x9
width 7
Environmental
temperature range -40 to 60
