| Electrical | |
|---|---|
| Average Input Power Max (W) | 500 |
| Bandwidth (MHz) | 50 |
| Connector | 7/16 DIN-Female |
| Electrical Tilt Available | 0, 2, 4, 6 degrees available |
| Frequency Range (MHz) | 380 to 430 |
| Gain Nominal (dBd) | 6 |
| Impedance (Ω) | 50 |
| Lightning Protection | DC ground |
| Number of ports | 2 |
| Passive intermod (dBc) | -150 |

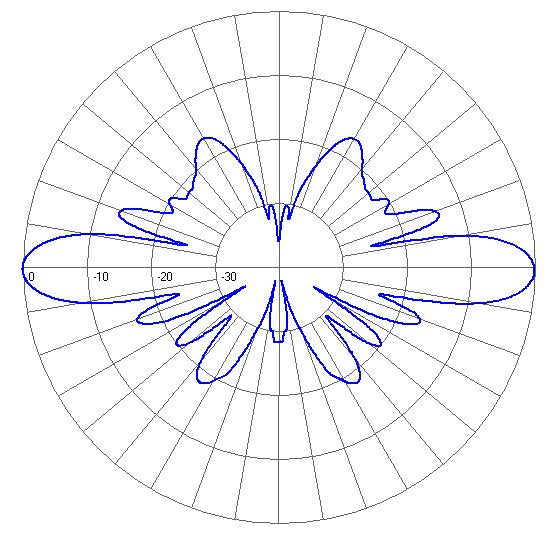

| Pattern | Omni-directional |
| PIP (KW) | 25 |
| Polarization | vertical |
| Mechanical | |
|---|---|
| Actual Shipping Weight (lbs) | 135 |
| Base Pipe Diameter (in) | 5 |
| Base pipe mounting length (in) | 26 |
| Length/ Height (in) | 278.3 |
| Mounting Configurations | Universal mount |
| Radome material | fiberglass (UV protected) |
| Shipping dimensions (in) | 295x6.5x6.5 |
| Environmental | |
|---|---|
| Temperature Range (°C) | -40 to +60 |
| Tip deflection 100 mph No Ice | 2.5 |
| Wind Loading Area | 6 ft² |
| Wind Loading Area (1/2" ice) | 7.3 ft² |
SC396D-HF1LDF-D00-I35-PIP-Spec-Sheet.pdf
