CT4453F

Combiner, 10" cavities, 3/4 wave, High 'Q', 4 CH, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!

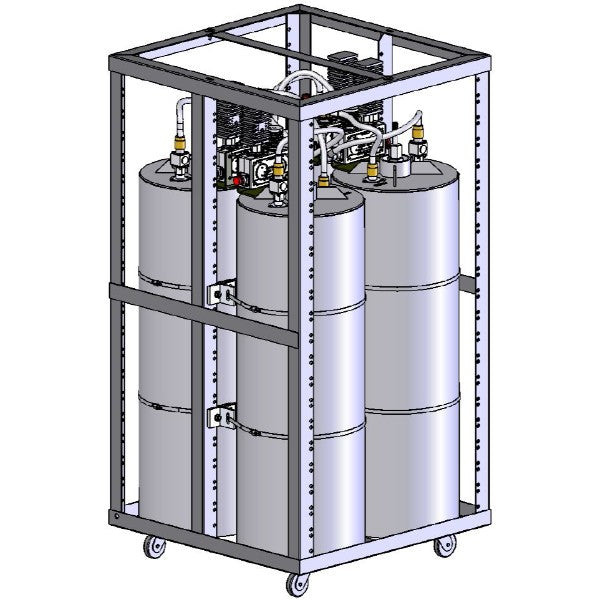

Minimum Tx-Tx separation of 0.075 MHz Low loss dual stage isolators Equipment is mounted in a Sinclair Open Frame Rack which is included
Tx Rx Spacing Min
10 mhz No
30 mhz No
3 mhz No
45 mhz No
5 mhz No
Band Cat
130 180 mhz No
320 380 mhz No
380 415 mhz Yes
430 470 mhz 1 No
459 512 mhz Yes
746 869 mhz No
763 776 mhz No
806 960 mhz No
851 869 mhz No
Performance Features
low pim certified No
pip certified No
Antenna Type
collinear No
corner reflector No
enclosed dipole No
exposed dipole No
ground No
panel No
stealth No
transportation No
whip No
yagi No
Mechanical
depth 21
length height 38
mounting configurations Sinclair Open Frame Rack
shipping dimensions 22x22x43
width 21
Electrical
cavity electrical length 04-Mar
frequency range 406 to 512
impedance 50
input connectors N-Female
input vswr max 1.25 : 1
isolation antenna to tx 60
isolation tx to tx 70
number of channels 4
output connectors N-Female
output vswr 2:01
