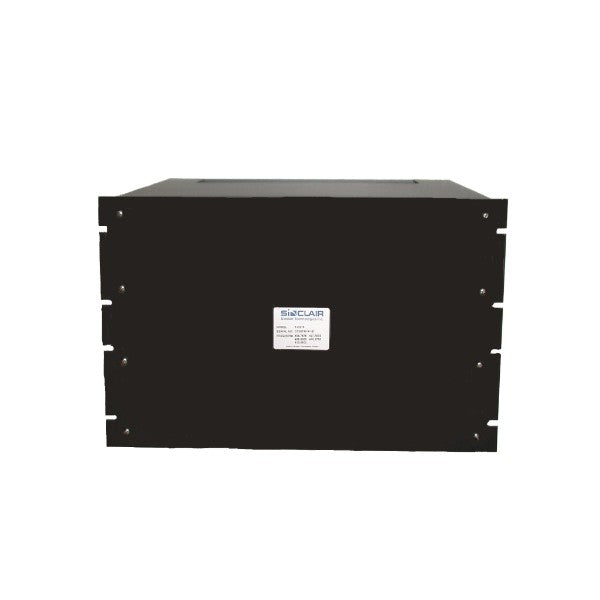

Combiner, 3 CH, 7" cavities, triple stage isolator, 406-512 MHz
Combiner, 3 CH, 7" cavities, triple stage isolator, 406-512 MHz

TJ3313-(X)

Combiner, 3 CH, 7" cavities, triple stage isolator, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!
• Three channel cavity-ferrite combiner in a compact configuration
• Triple-stage low-loss isolator with outstanding 80 dB Tx-Tx isolation
• High Q bandpass cavity filters
• Close Tx separation down to 200 kHz
Electrical
average input power max 125
frequency range 406 to 512
impedance 50
input connectors N-Female
input vswr max 1.25 : 1
isolation antenna to tx 70
isolation tx to tx 80
number of channels 3
output connectors N-Female
output vswr 2:01
Mechanical
actual shipping weight 23
cavity width or diameter 7
depth 15.3
length height 12.25
mounting configurations 19 inch rach
outer conductor material aluminum
shipping dimensions 22x22x16.5
width 19
Environmental
temperature range -30 to +60
