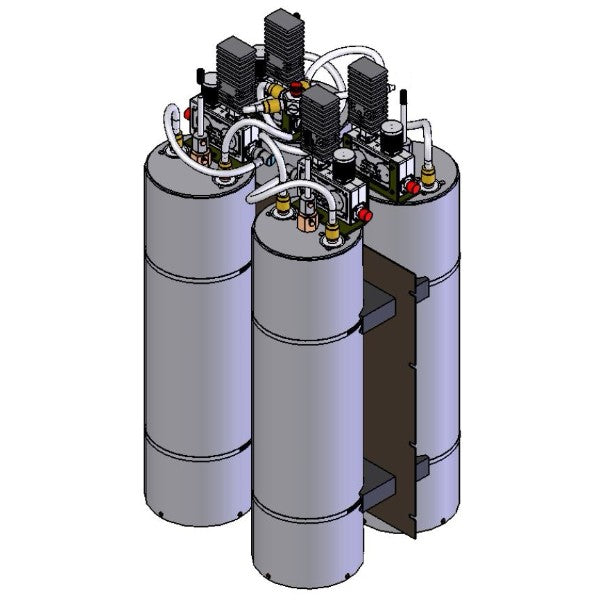

Combiner, 4 CH, 7" cavities, dual stage isolator, 148-174 MHz
Combiner, 4 CH, 7" cavities, dual stage isolator, 148-174 MHz

TJ2214-3

Combiner, 4 CH, 7" cavities, dual stage isolator, 148-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• Four channel cavity-ferrite combiner in compact configuration
• Dual low-loss isolator
• High Q bandpass cavity filters
Electrical
frequency range (MHz) 148 to 174
impedance (Ω) 50
input connectors N-Female
isolation antenna to tx 60
isolation antenna to tx (dB) 60
isolation tx to tx 70
isolation tx to tx (dB) 70
number of channels 4
output connectors N-Female
output vswr 2:01
power (per channel) (W) 125
power per channel 125
Mechanical
actual shipping weight (lbs) 50
cavity height 24
cavity height (in) 24
coupling loops material copper
depth (in) 15
end plates material aluminum
finish chemical conversion
length height (in) 32
mounting configurations 19 inch rack
shipping dimensions (in) 22x19x38
tuning rod material invar
Width (in) 19
Environmental
temperature range (°C) -30 to 60
