CT6450F-R-5

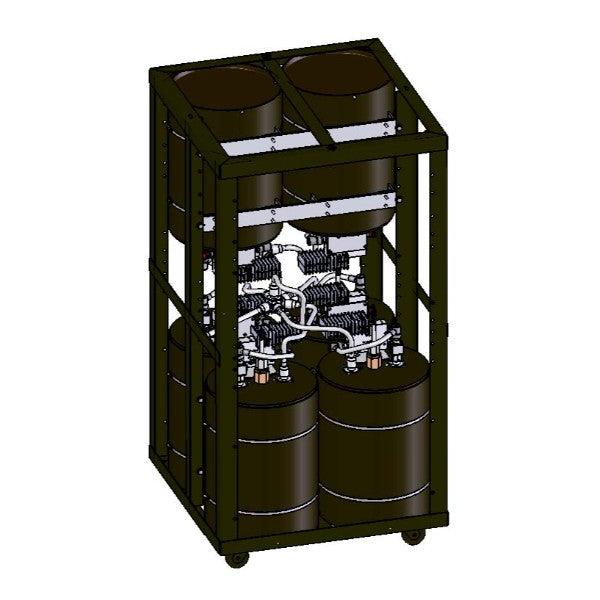

Combiner, 6 CH, 10" cavities, 1/4 wave, High 'Q', 459 to 512 MHz

Regular price $0.00
/

Only 0 items in stock!
• Broad band isolators covering the specified band
• Dual stage isolators and 10 inch high Q 1/4 wave bandpass cavity for each channel
• Works for inter-channel spacings as close as 100 KHz
Electrical
frequency range (MHz) 459 to 512
frequency separation max 12
impedance (Ω) 50
input connectors N-Female
isolation antenna to tx 50
isolation tx to tx 60
number of channels 6
output connectors N-Female
output vswr 2:01
Mechanical
actual shipping weight (lbs) 125
depth (in) 21
finish chemical conversion
length height (in) 38
shipping dimensions (in) 22x22x43
Width (in) 21
Environmental
temperature range (°C) -30 to 60
