Aurora™ collinear omni antenna, 3 dBd, HD, low PIM, 340-355 MHz
Aurora™ collinear omni antenna, 3 dBd, HD, low PIM, 340-355 MHz

SC343-HT3LDF(DXX)

Aurora™ collinear omni antenna, 3 dBd, HD, low PIM, 340-355 MHz

Regular price $0.00
/

Only 0 items in stock!

• Medium gain, omni-directional pattern

• Patent-pending Aurora™ design for highly consistent RF performance

• Heavy duty construction and UV protected radome for harsh environment

• 0, 3, or 6 degrees of electrical downtilt available

Electrical
average input power max (W) 500
bandwidth (MHz) 15
connector 7/16 DIN-Female
electrical tilt available 0, 3, or 6 degrees
frequency range (MHz) 340 to 355
gain nominal (dBd) 3
impedance (Ω) 50
lightning protection DC ground
number of ports 1

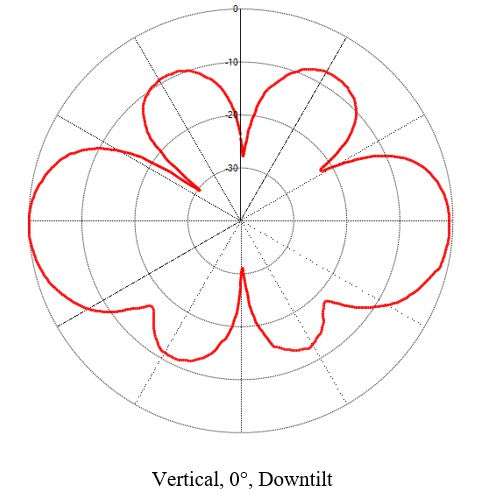

pattern Omni- directional
polarization vertical
Mechanical
base pipe diameter 2
depth (in) 2
length height (in) 58
mounting configurations upright
radome color Blue
radome material fiberglass
shipping dimensions (in) 64x4.5x4.5
Width (in) 2
Environmental
bending moment 100 mph no ice 15
lateral thrust 100 mph no ice 18
rated wind velocity no ice 280
temperature range (°C) -40 to +60
tip deflection 100 mph no ice 0.2
