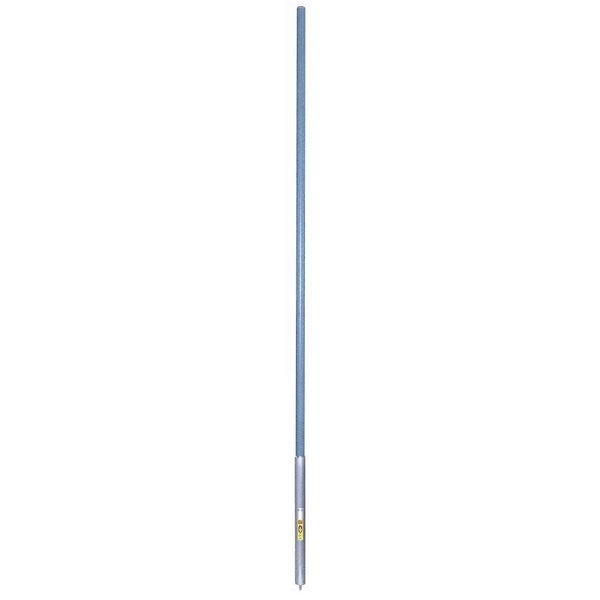

Aurora™ collinear omni antenna, 7.5 dBd, HD, low PIM, 470-490 MHz (Successor of SC328 Series)
Aurora™ collinear omni antenna, 7.5 dBd, HD, low PIM, 470-490 MHz (Successor of SC328 Series)

SC347-HF8LDF(D00-M)

Aurora™ collinear omni antenna, 7.5 dBd, HD, low PIM, 470-490 MHz (Successor of SC328 Series)

Regular price $0.00
/

Only 0 items in stock!

High gain, omni-directional pattern

Patent-pending Aurora™ design for stable pattern

Heavy duty construction and UV protected radome for long life

-150dBc PIM rating for low noise characteristics, ideal for trunking systems

Electrical
average input power max (W) 250
bandwidth (MHz) 20
connector 7/16 DIN-Female
frequency range (MHz) 430 to 450
gain nominal (dBd) 7.5
impedance (Ω) 50
lightning protection DC ground
number of ports 1

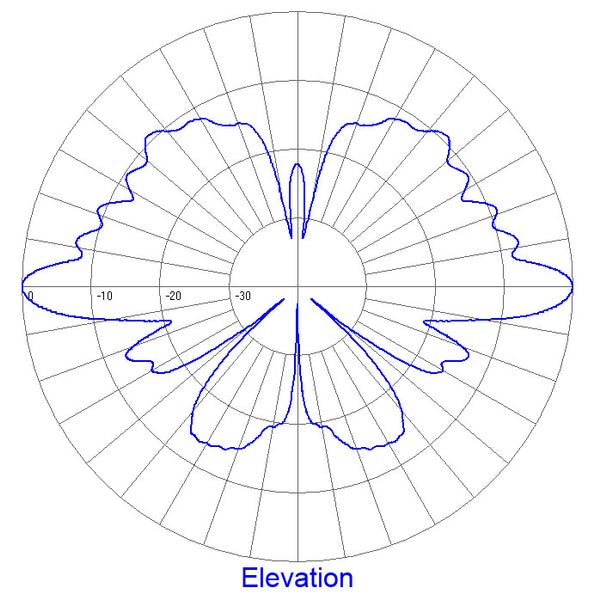

pattern Omni-directional
polarization vertical
Mechanical
base pipe diameter 2.88
base pipe mounting length 18
depth (in) 2.88
estimated shipping weight lbs 56
length height (in) 150
radome material fiberglass (UV protected)
shipping dimensions (in) 154x4.5x4.5
Width (in) 2.88
Environmental
bending moment 100 mph no ice 305
lateral thrust 100 mph no ice 65
rated wind velocity no ice 200
temperature range (°C) -40 to +60
tip deflection 100 mph no ice 1.3
