Corner reflector directive, 10 dBd, 896-960 MHz
Corner reflector directive, 10 dBd, 896-960 MHz

SV402-SF2SNM

Corner reflector directive, 10 dBd, 896-960 MHz

Regular price $0.00
/

Only 0 items in stock!

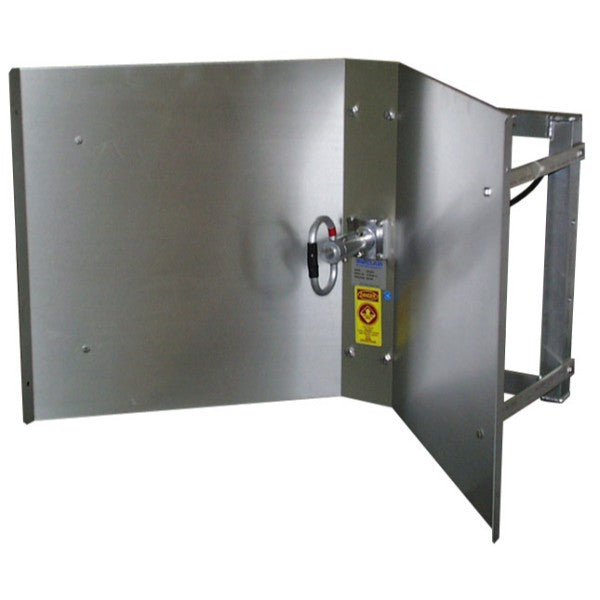

• Compact, rugged, broadband corner reflector
• Resonant dipole is DC grounded and mounted into an aluminum reflector
• Nominal 10 dBd gain.
Electrical
average input power max (W) 100
connector N-Male
frequency range (MHz) 896 to 960
front to back ratio typ 30
gain nominal (dBi) 10
horizontal beamwidth typ 30
lightning protection DC ground

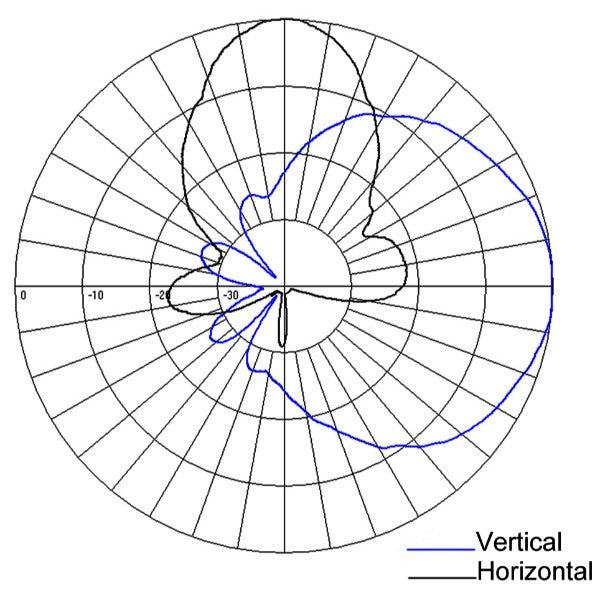

pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 35
depth (in) 18
length height (in) 24
shipping dimensions (in) 50x21x34
Width (in) 48
Environmental
lateral thrust 100 mph no ice 167
rated wind velocity no ice 100
temperature range (°C) -40 to 60
