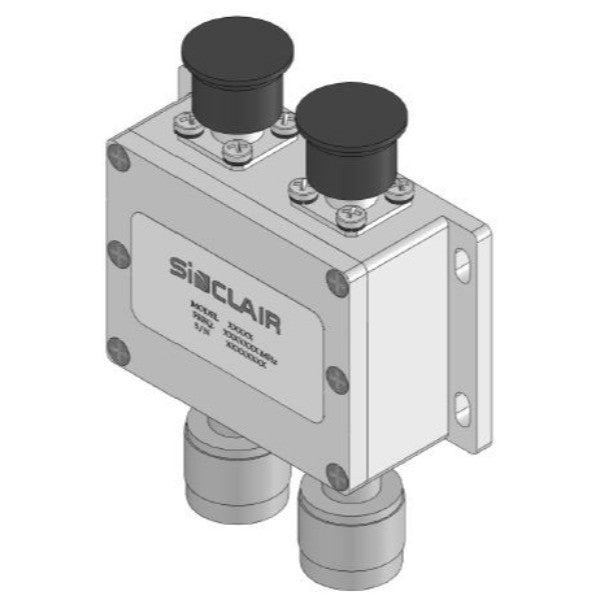

Coupler, 70/30 split, 30 MHz BW, 300 Watts, 130-160 MHz
Coupler, 70/30 split, 30 MHz BW, 300 Watts, 130-160 MHz

HH2141C-1-1

Coupler, 70/30 split, 30 MHz BW, 300 Watts, 130-160 MHz

Regular price $0.00
/

Only 0 items in stock!
• Typ insertion loss of 1.7 +/- 0.2 dB and 5.4 +/- 0.4 dB
• 30 MHz Bandwidth
• 300 Watts power handling
Electrical
connectors N-Male and N-Female
frequency range (MHz) 130 to 160
impedance (Ω) 50
insertion loss max 1.9
insertion loss max (dB) 1.9
insertion loss max (dB) 1.9
isolation (min) (dB) 20
isolation min (dB) 20
power rating (W) 300
vswr max 1.25 : 1
Mechanical
depth (in) 2
length height (in) 1.15
shipping dimensions (in) 9x6x2.5
Width (in) 3.12
Environmental
temperature range (°C) -30 to 60
