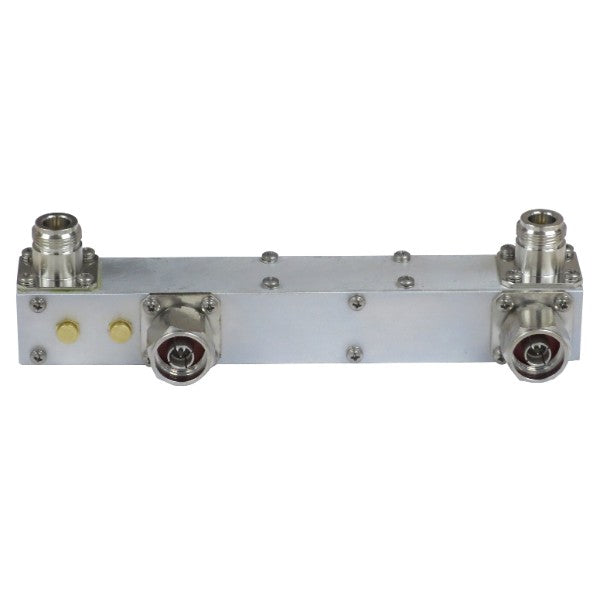

Coupler, balanced, 3% B.W., N(m)/ N(f), 300 W, 406-512 MHz
Coupler, balanced, 3% B.W., N(m)/ N(f), 300 W, 406-512 MHz

HH3140

Coupler, balanced, 3% B.W., N(m)/ N(f), 300 W, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!
• T1 to T2 inputs N Male, Load and antenna termination N Female

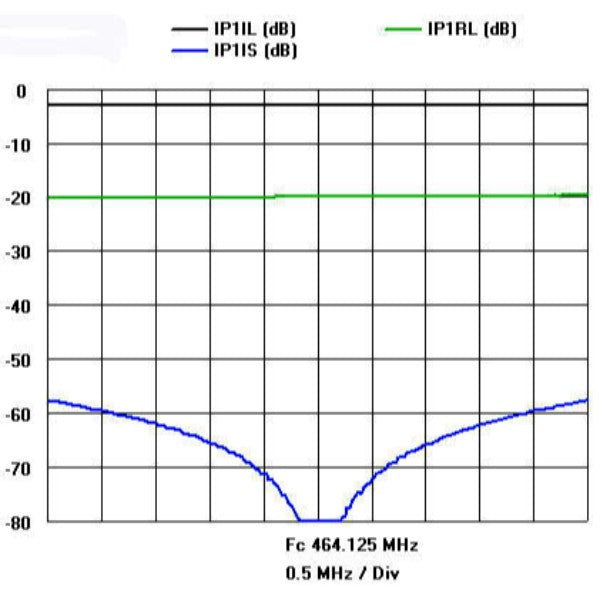

• Max insertion loss of 3.3 dB per port
• 300 Watt power handling
• VSWR less than 1.25 for T1 to T2 ports
Electrical
connectors N-Male/N-Female
frequency range (MHz) 406 to 512
impedance (Ω) 50
isolation (min) (dB) 45
isolation min (dB) 45
power rating (W) 300
vswr max 1.25 : 1
Mechanical
actual shipping weight (lbs) 3
depth (in) 1
length height (in) 1.2
shipping dimensions (in) 13x9x3
Width (in) 7
Environmental
temperature range (°C) -30 to 60
