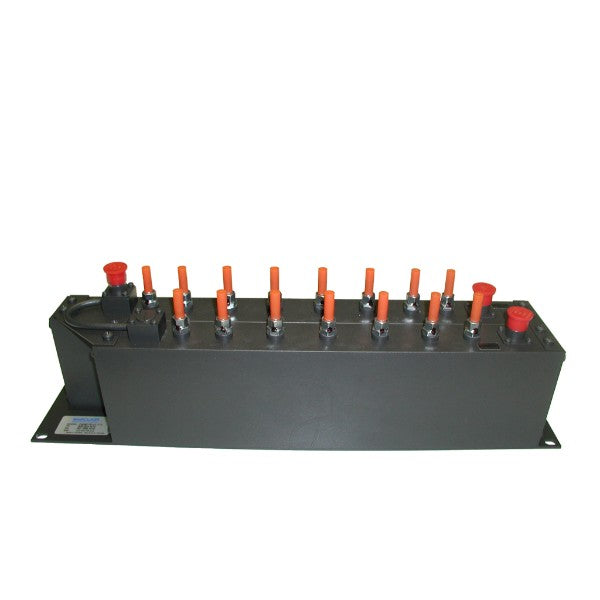

Duplexer, combline, bandpass, low loss,  806-824 & 851-869 MHz
Duplexer, combline, bandpass, low loss,  806-824 & 851-869 MHz

P40901R1CL-T-1

Duplexer, combline, bandpass, low loss, 806-824 & 851-869 MHz

Regular price $0.00
/

Only 0 items in stock!

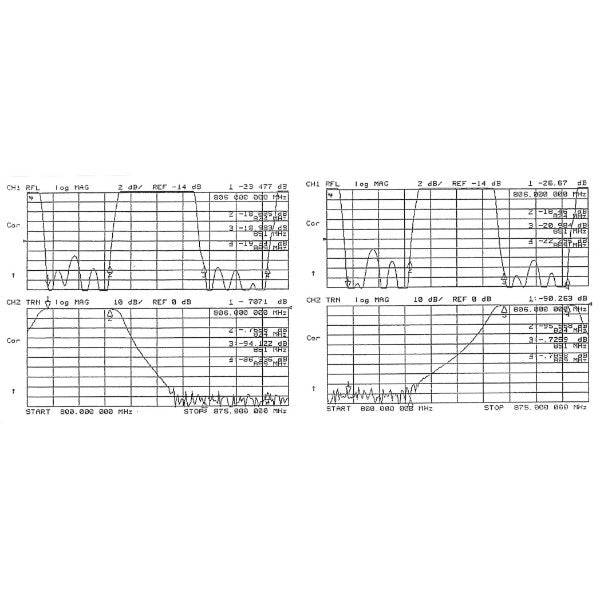

Covers entire Rx 806-824 MHz band and Tx 851-869 MHz band 400 Watts power handling 2 rack units high
Tx Rx Spacing Min
10 mhz No
3 mhz No
5 mhz No
Band Cat
108 136 mhz No
132 150 mhz No
148 174 mhz No
216 225 mhz No
300 406 mhz No
406 512 mhz No
746 806 mhz Yes
806 960 mhz Yes
Performance Features
low pim certified No
pip certified No
Antenna Type
collinear No
corner reflector No
enclosed dipole No
exposed dipole No
ground No
panel No
stealth No
transportation No
whip No
yagi No
Mechanical
actual shipping weight 20
depth 6
end plates material aluminum
inner conductor material silver plated brass
length height 3.5
mounting configurations 19 inch rack
outer conductor material aluminum
shipping dimensions 24x10x8
tuning rod material invar
width 19
Electrical
average input power max 400
impedance 50
input connectors N-Female
input vswr max 1.5 : 1
insertion loss max rx to ant 0.9
insertion loss max tx to ant 1
insertion loss typ rx to ant 0.8
number of cavities rx side 7
number of cavities tx side 8
output connectors N-Female
rx frequency range 806 to 824
tx frequency range 851 to 869
