Enclosed log periodic data system antenna, 5 dBd, 800-1000 MHz
Enclosed log periodic data system antenna, 5 dBd, 800-1000 MHz

SP440-SF2SNM(C02)

Enclosed log periodic data system antenna, 5 dBd, 800-1000 MHz

Regular price $0.00
/

Only 0 items in stock!
• Compact radome-enclosed log-periodic antenna for SCADA/telemetry application.
• Light but rugged ABS radome provides protection from snow, ice, and environmental hazards.
• Full 200MHz of bandwidth - Ideally suited for PTP, PMP, and receive-only applications.
• Comes with a 2 ft cable.
Electrical
average input power max (W) 50
bandwidth (MHz) 200
connector 4.3-10 male
frequency range (MHz) 800-1000
front to back ratio typ 25
gain nominal (dBi) 5
horizontal beamwidth typ 95
impedance (Ω) 50
lightning protection DC ground

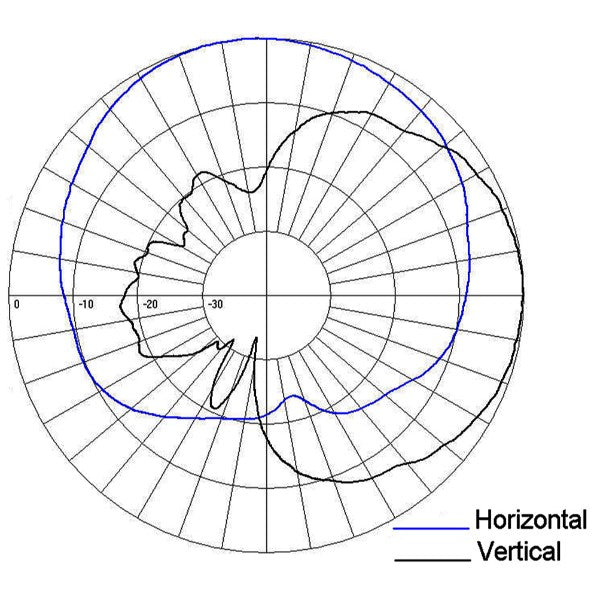

pattern Directional
polarization vertical
Mechanical
actual shipping weight (lbs) 5
depth (in) 8.5
length height (in) 10.56
mounting hardware included Clamp167
radome material ABS (white)
shipping dimensions (in) 5x9x13
Width (in) 2.88
Environmental
lateral thrust 100 mph no ice 24
rated wind velocity no ice 190
temperature range (°C) -40 to +60
