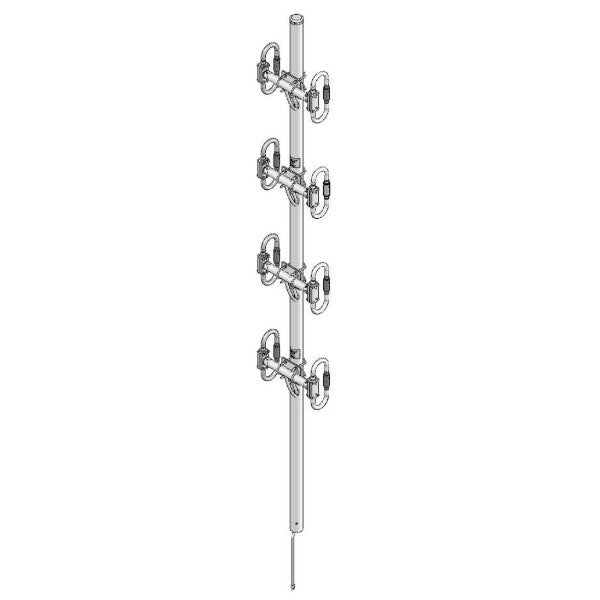

Exposed dipole, 4.5/7 dBd, field adj, N(f), HD, null fill, 406-512 MHz
Exposed dipole, 4.5/7 dBd, field adj, N(f), HD, null fill, 406-512 MHz

SD3352-HF2PASNF(DXXB-NUF)

Exposed dipole, 4.5/7 dBd, field adj, N(f), HD, null fill, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!
• 4.5 dBd gain in Omni-directional configuration; 7 dBd gain in bi-directional configuration
• Pattern can be easily changed in the field
• Broadband, 500 Watts power handling, top mount
• Optimized null fill for close-in coverage enhancement
Electrical
average input power max (W) 500
connector N-Female
electrical tilt available 0, 2, 4, or 6 degrees
frequency range (MHz) 406 to 512
gain nominal (dBd) 7
impedance (Ω) 50
lightning protection DC ground

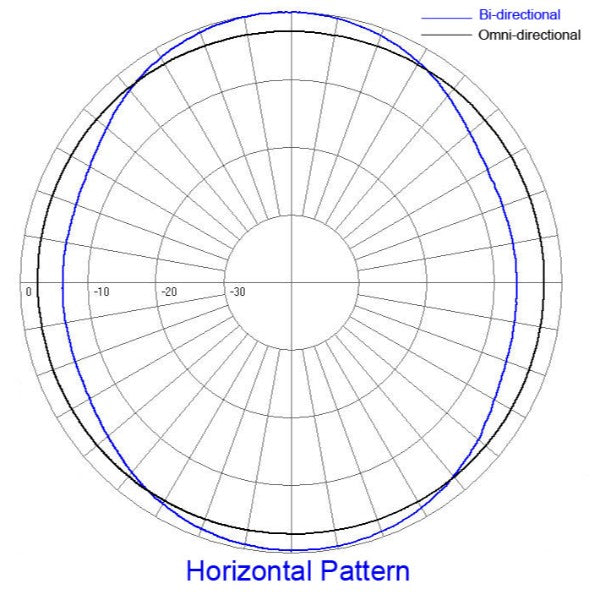

pattern Omni or Bi-directional, Adjustable
polarization vertical
Mechanical
actual shipping weight (lbs) 41
base pipe diameter 2.38
base pipe material aluminum
base pipe mounting length 24
depth (in) 12.75
length height (in) 114
mounting configurations top mount
mounting hardware included Clamp130
radiating element material aluminum
shipping dimensions (in) 120x18x12
Width (in) 12.75
Environmental
bending moment 100 mph no ice 255
lateral thrust 100 mph no ice 77
rated wind velocity no ice 180
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.5
