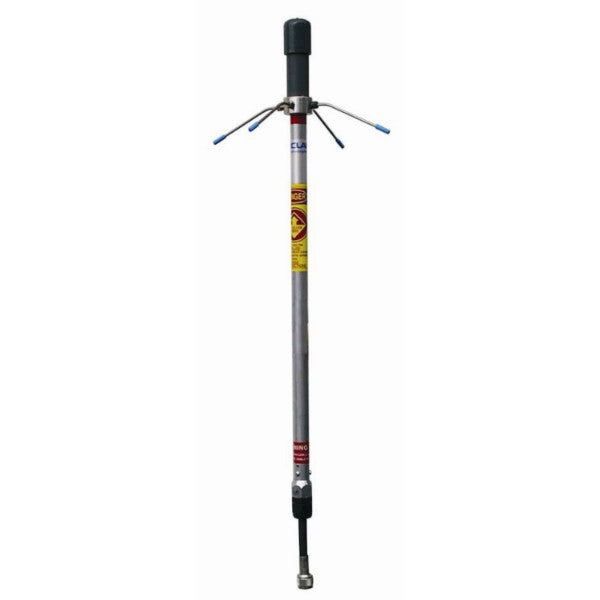

Ground plane omni, 0 dBd, 806-890 MHz
Ground plane omni, 0 dBd, 806-890 MHz


Ground plane omni, 0 dBd, 806-890 MHz

Regular price $0.00

Only 0 items in stock!
• Rugged construction, light weight and easy to install
• Can be stocked for reuse due to its broad band
• 2 clamps provided
average input power max (W) 100
connector N-Male
frequency range (MHz) 806 to 890
horizontal beamwidth typ 360
impedance (Ω) 50
lightning protection DC ground
pattern Omni-directional
polarization vertical
actual shipping weight (lbs) 5
base pipe diameter 0.75
base pipe material aluminum
base pipe mounting length 8
length height (in) 21
mounting configurations upright
mounting hardware included Clamp135
radiating element material aluminum
shipping dimensions (in) 6x4x26
lateral thrust 100 mph no ice 12.3
rated wind velocity no ice 150
temperature range (°C) -40 to 60
