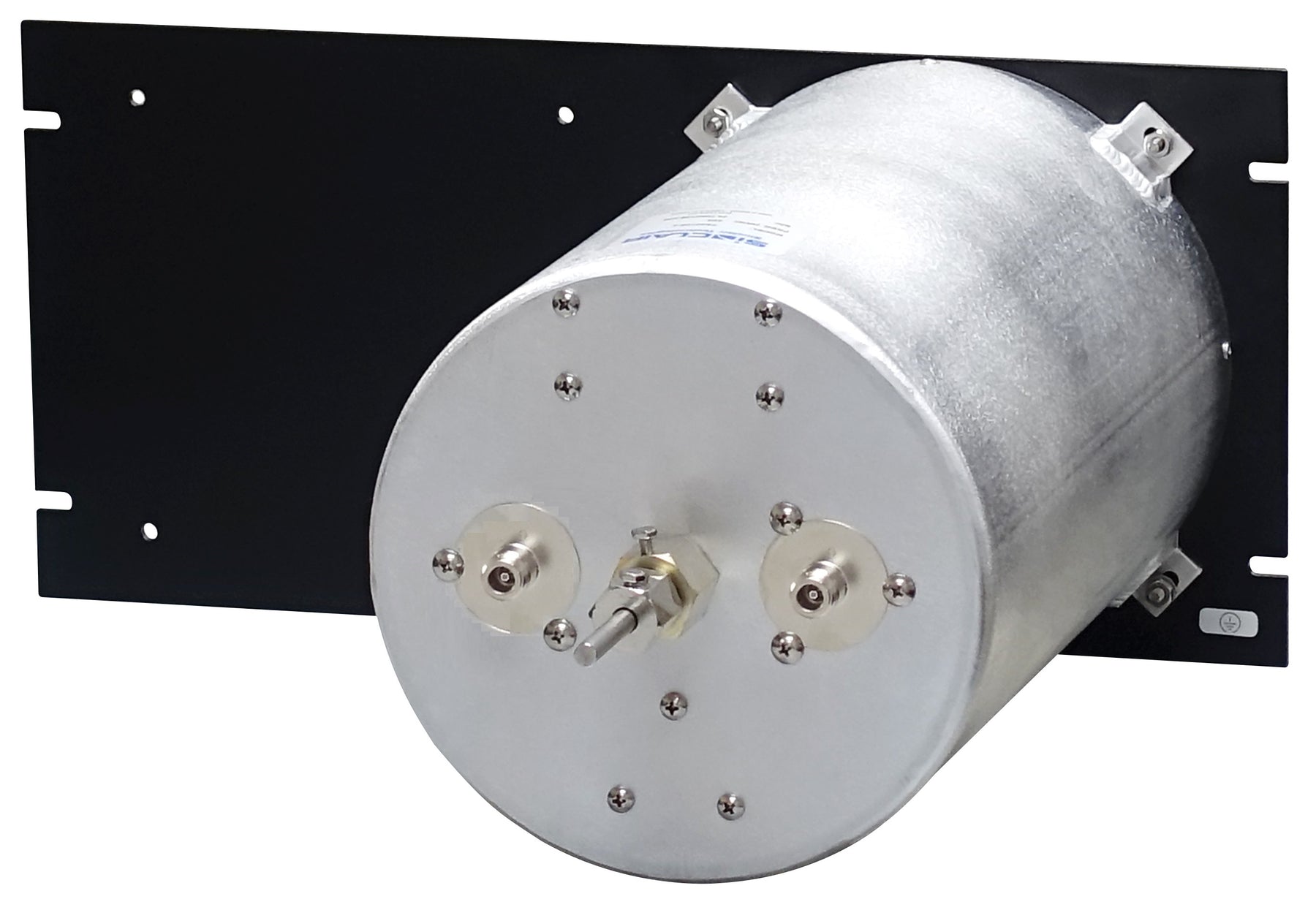

High-Q Bandpass 1/4 Wave Single 8.5" Cavity Filter, 406-512 MHz
High-Q Bandpass 1/4 Wave Single 8.5" Cavity Filter, 406-512 MHz

FP30109-3

High-Q Bandpass 1/4 Wave Single 8.5" Cavity Filter, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!
Aluminum cylinder silver plated brass coaxial inner conductor Silver plating and chromate conversion coating limit corrosion and enhance performance Temperature compensated for extremely low frequency drift
Band Cat
108 138 mhz No
174 230 mhz No
225 300 mhz 1 No
300 400 mhz No
406 512 mhz Yes
746 806 mhz No
806 960 mhz No
Performance Features
low pim certified No
pip certified No
Antenna Type
collinear No
corner reflector No
enclosed dipole No
exposed dipole No
ground No
panel No
stealth No
transportation No
whip No
yagi No
Mechanical
actual shipping weight 11
cavity depth 13.5
cavity width or diameter 8.5
depth 8.5
length height 13.5
mounting configurations 19 inch rack
shipping dimensions 10x10x16
width 8.5
Electrical
average input power max 80-350
frequency range 406 to 512
impedance 50
input connectors N-Female
input vswr max 1.5 : 1
insertion loss min 0.5
output connectors N-Female
