I.M. Suppression panel, single stage, 60W load, 132-174 MHz
I.M. Suppression panel, single stage, 60W load, 132-174 MHz

PC2113

I.M. Suppression panel, single stage, 60W load, 132-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• Single stage isolator with 60 Watt load provides 35 dB (typ) isolation
• Can be tuned over the 132-174 MHz band and comes with built-in harmonic filters
• Compact design shipped precisely tuned to customer specified frequency
Electrical
average input power max 125
bandwidth 5
connectors N-Female
frequency range 132 to 174
insertion loss typ tx to ant 0.4

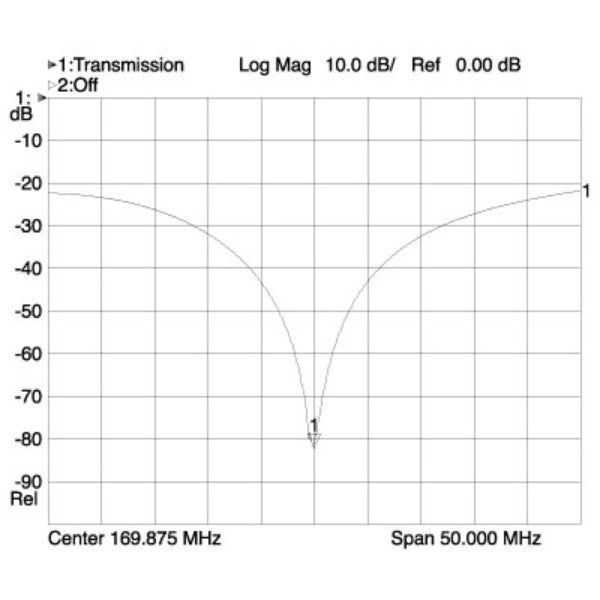

isolation min 25
isolation typ 35
vswr max 1.25 : 1
Mechanical
actual shipping weight 20
depth 9.125
length height 1.75
shipping dimensions 19x26x7
width 19
Environmental
temperature range -30 to 60
