Mobile omni, 0 dBd, 138-163 MHz
Mobile omni, 0 dBd, 138-163 MHz

ST221-SF1SUF(FXXXX)

Mobile omni, 0 dBd, 138-163 MHz

Regular price $0.00
/

Only 0 items in stock!
• Low profile for a wide range of mobile applications
• Cast aluminum
• 2.5 MHz Bandwidth
• Applications include: trains, taxis, police cars, emergency vehicles, buses and trucks
Electrical
average input power max (W) 300
bandwidth (MHz) 2.5
connector UHF-Female
frequency range (MHz) 138 to 163
impedance (Ω) 50
lightning protection DC ground

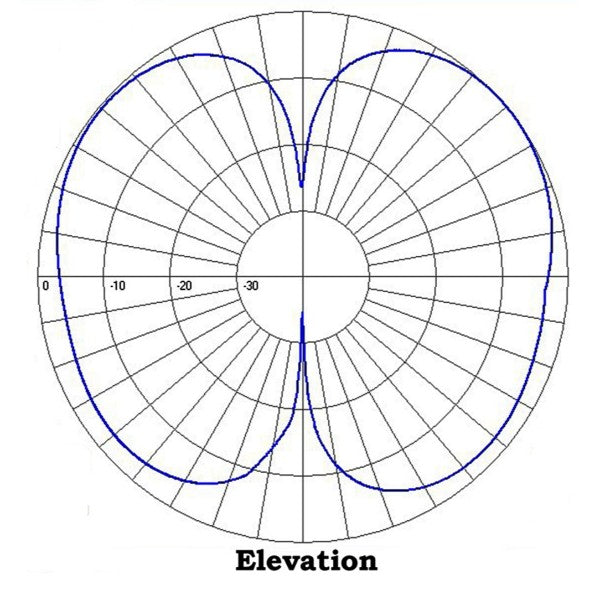

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 6
depth (in) 24.5
ground plane (min) 62x42
ground plane min 62x42
length height (in) 4
mounting configurations upright
mounting hardware Supplied
radiating element material aluminum
shipping dimensions (in) 3x5x25
Width (in) 2.2
Environmental
temperature range (°C) -40 to 60
