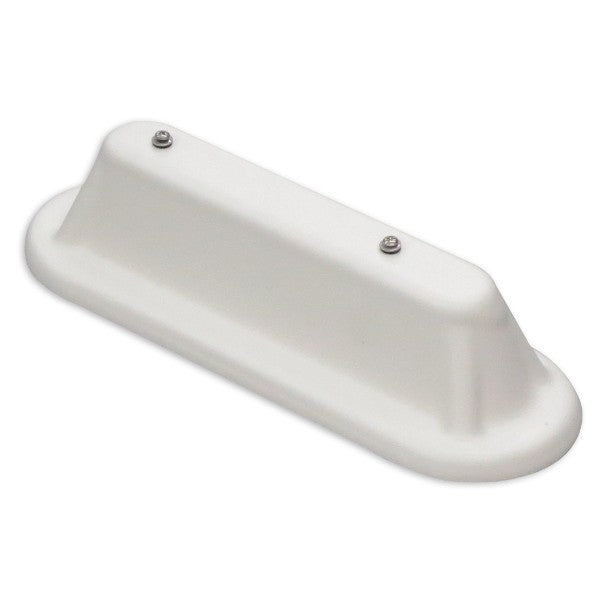

Mobile omni, 0 dBd, 14 MHz B.W., N(f) Conn, White, 406-420 MHz
Mobile omni, 0 dBd, 14 MHz B.W., N(f) Conn, White, 406-420 MHz

ST321R-SF1SNF(CWH)

Mobile omni, 0 dBd, 14 MHz B.W., N(f) Conn, White, 406-420 MHz

Regular price $0.00
/

Only 0 items in stock!
• For use in both fixed and mobile installations
• Proven performance in harsh environments
• Available with white or grey radome
• Available with N-Female or BNC-Female connector
Electrical
average input power max (W) 30
bandwidth (MHz) 14
connector N-Female
frequency range (MHz) 406 to 420
impedance (Ω) 50
lightning protection DC ground

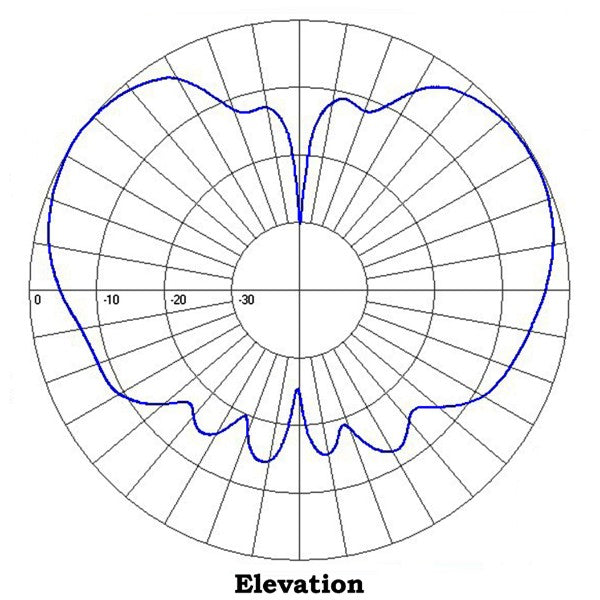

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 5
ground plane (min) 30x30
ground plane min 30x30
length (in) 11.8
length height (in) 3
mounting configurations upright
mounting hardware Supplied
radome material ABS (white)
shipping dimensions (in) 13x8x5
Width (in) 3.8
Environmental
temperature range (°C) -40 to 60
