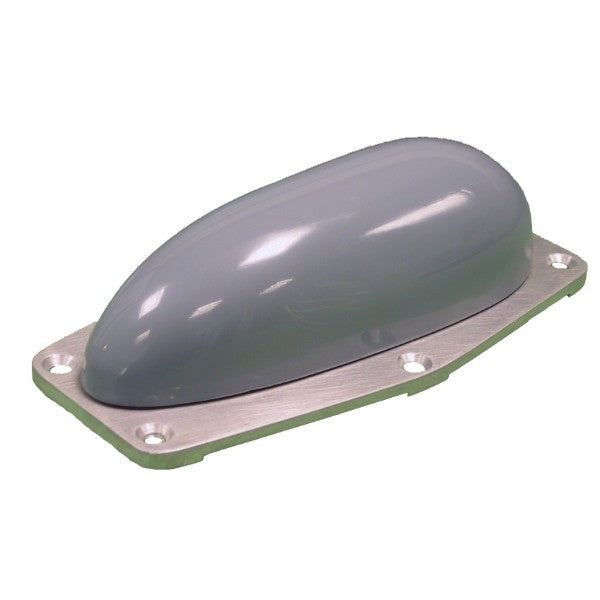

Mobile omni, 0 dBd, low profile, radome enclosed, 870-960 MHz
Mobile omni, 0 dBd, low profile, radome enclosed, 870-960 MHz

ST421R-SF3SNF

Mobile omni, 0 dBd, low profile, radome enclosed, 870-960 MHz

Regular price $0.00
/

Only 0 items in stock!
• Omni-directional transit antenna with heavy duty fiberglass radome with polyurethane coating
• Covers both public GSM and railway GSM-R frequency bands
• Ideal for height-restricted applications
• Aerodynamic design reduces wind-loading
• Heavy-duty fiberglass radome
Electrical
average input power max (W) 200
bandwidth (MHz) 90
connector N-Female (Socket)
frequency range (MHz) 870 to 960
impedance (Ω) 50
lightning protection DC ground

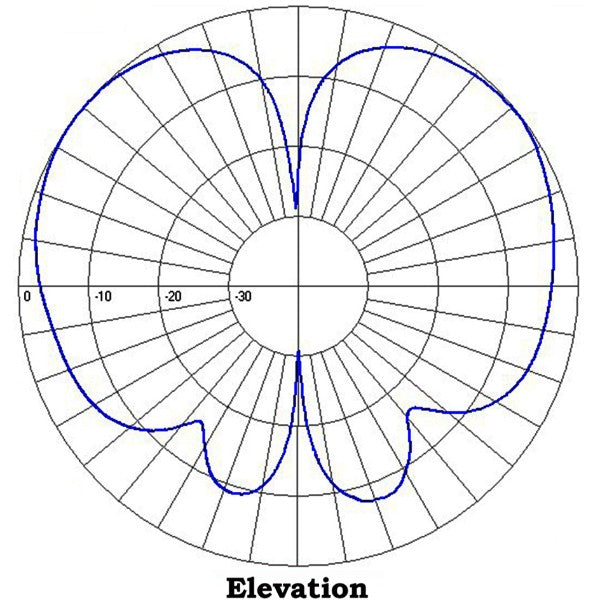

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 2.5
ground plane (min) 10x10
ground plane min 10x10
ingress protection 65
length (in) 7.37
length height (in) 2.09
mounting hardware BOLT M6 x 25, A2
radome material Grey, Fiberglass
shipping dimensions (in) 10x5x5
Width (in) 3.7
Environmental
temperature range (°C) -30 to 60
