| Electrical | |
|---|---|
| average input power max (W) | 50 |
| connector | N-Female |
| frequency range (MHz) | 1850 to 1990 |
| impedance (Ω) | 50 |

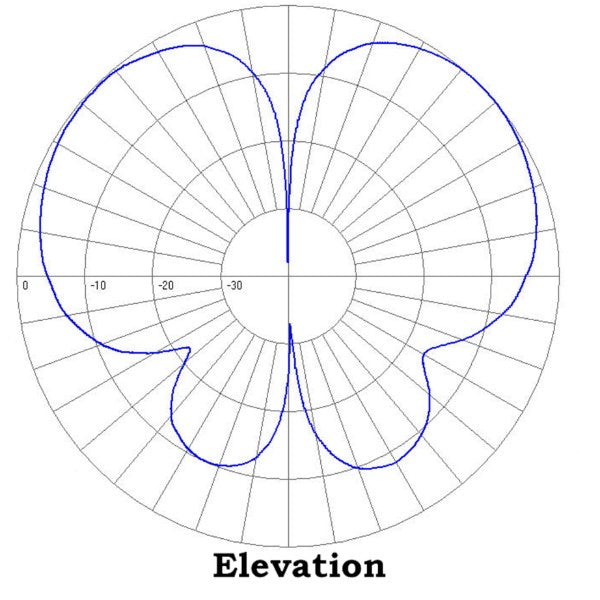

| pattern | Omni-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 3 |
| ground plane (min) | 6.5x6.5 |
| ground plane min | 6.5x6.5 |
| length height (in) | 3.8 |
| mounting configurations | upright |
| radiating element material | copper |
| radome material | ABS (white) |
| shipping dimensions (in) | 11x8x5 |
| Width (in) | 4.5 |
| Environmental | |
|---|---|
| temperature range (°C) | -30 to 60 |
SM500-SF6SNF(CWH)-Spec-Sheet.pdf
