Mobile omni, 0 dBd, low profile, white, 746-869 MHz
Mobile omni, 0 dBd, low profile, white, 746-869 MHz

SM500-SF8SNF(CWH)

Mobile omni, 0 dBd, low profile, white, 746-869 MHz

Regular price $0.00
/

Only 0 items in stock!

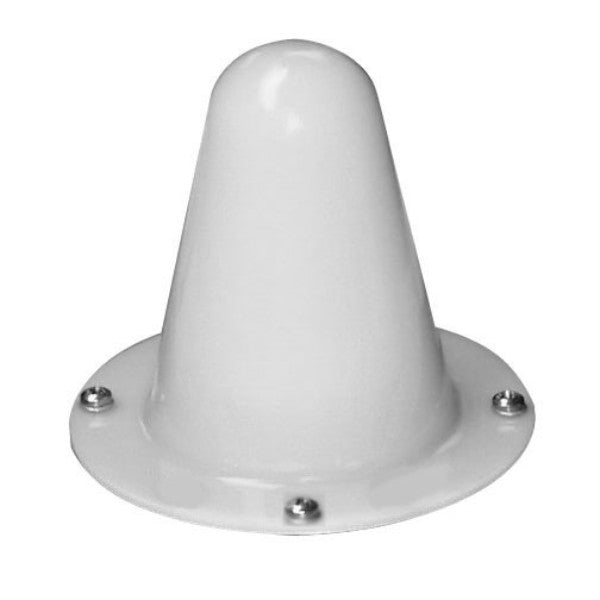

• Low profile, white ABS radome
• Ideal for either mobile or in-building applications
• Additional ground plane required for installation
Electrical
average input power max (W) 50
connector N-Female
frequency range (MHz) 746 to 869
impedance (Ω) 50

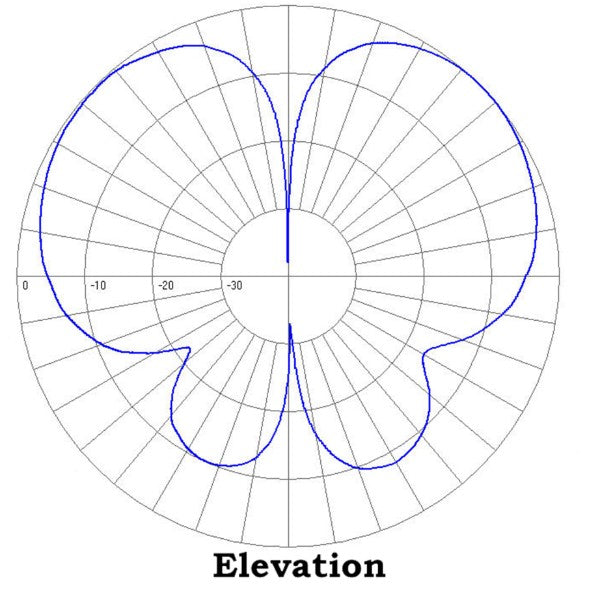

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 3
ground plane (min) 16x16
ground plane min 16x16
length height (in) 3.8
mounting configurations upright
radiating element material copper
radome material ABS (white)
shipping dimensions (in) 11x8x5
Width (in) 4.5
Environmental
temperature range (°C) -30 to 60
