FP220R161/098-NMF

N connectors, Pass 217-223 MHz, Reject 160-162 & 88-108 MHz

$0.00
/
Only 0 items in stock!
• Suitable for close frequency band signal isolation
• Designed for panel surface mount

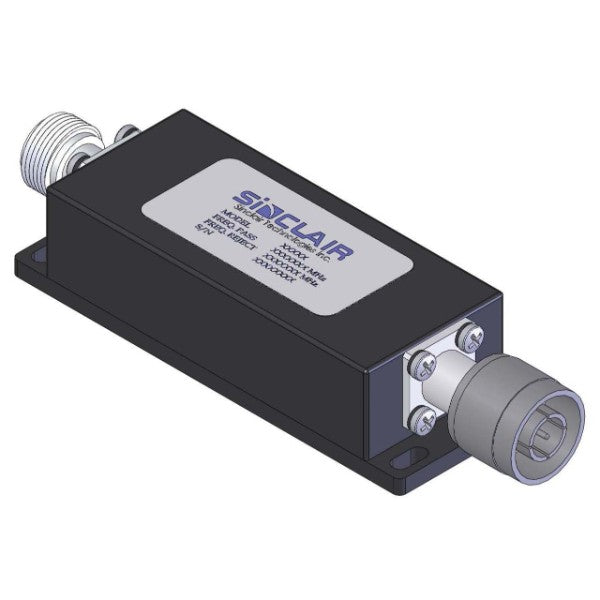

• Compact construction with one N-male connector and one N-female connector
• 100 watts power handling capability
Electrical
average input power max (W) 100
bandwidth (MHz) 6

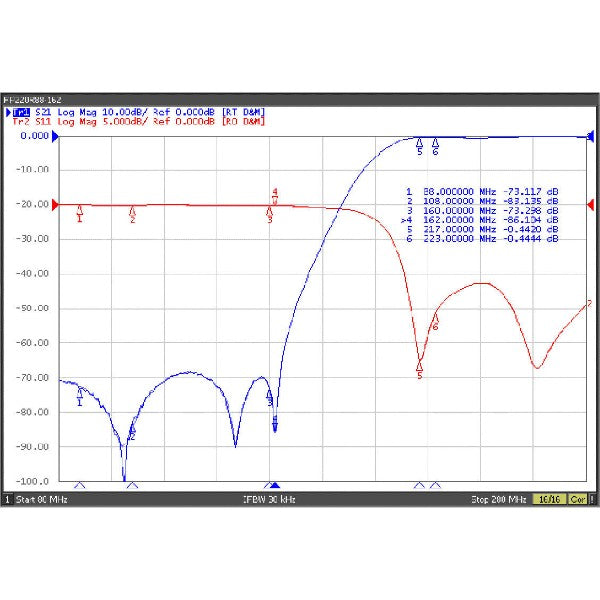

frequency range pass band 217 to 223
frequency range reject band 160 to 162
frequency range reject band 2 88 to 108
impedance (Ω) 50
input connectors N-Male
output connectors N-Female
pass band insertion loss max 0.7
rejection level (min) (dB) 70
Mechanical
height (in) 0.96
length (in) 4.83
mounting information Flange Mount
shipping dimensions (in) 9x6x3
Width (in) 1.45
Environmental
temperature range (°C) -30 to 60
