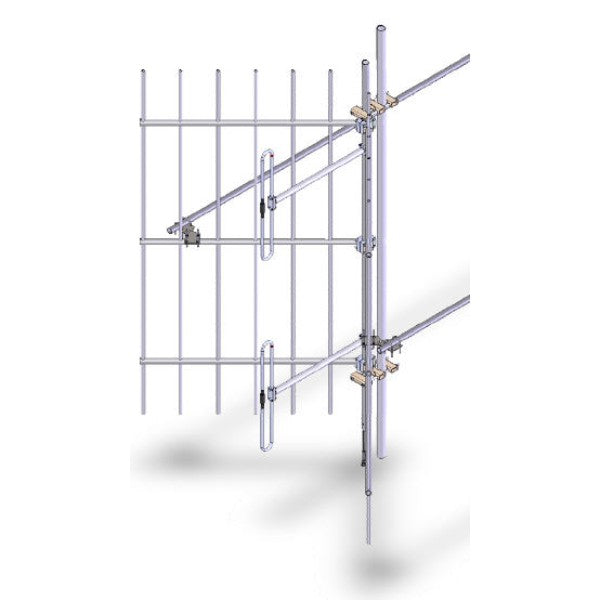

Reflector Ant, 2 dipole, low PIM, 60 beamwidth, 138-174 MHz
Reflector Ant, 2 dipole, low PIM, 60 beamwidth, 138-174 MHz

SD212R-SF2P60LDF(D00S)

Reflector Ant, 2 dipole, low PIM, 60 beamwidth, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• 60 horizontal beamwidth for VHF simulcast applications
• Two bay stacked dipoles offering 10 dBd gain
• Unique design for low passive intermodulation
Electrical
average input power max 300
connector 7/16 DIN-Female
frequency range 138 to 174
front to back ratio typ 25
gain nominal 10

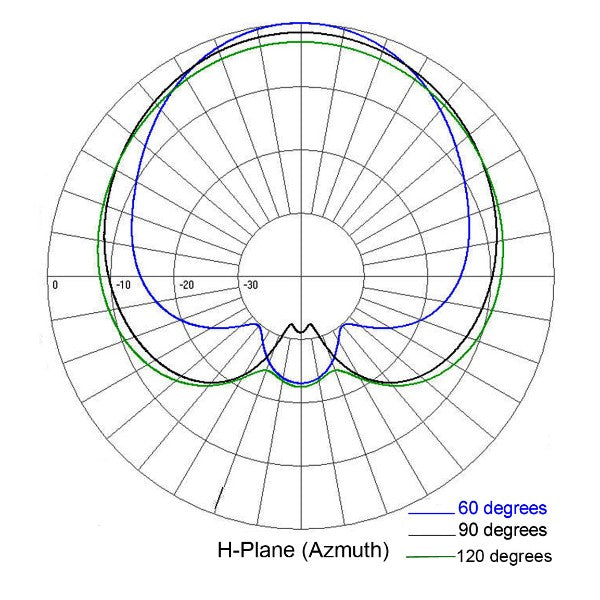

horizontal beamwidth typ 60
lightning protection DC ground
pattern Directional
polarization vertical
vertical beamwidth typ 36
vswr max 1.5 : 1
Mechanical
base pipe diameter 2.38
base pipe material aluminum
depth 42
estimated shipping weight 160
length height 120
mounting configurations side mount
mounting hardware optional Clamp006A/Clamp006B & Clamp0064HD/Clamp017
shipping dimensions package 1 126x62x6
shipping dimensions package 2 124x44x4
shipping dimensions package 3 147x4x2
shipping weight package 1 90
shipping weight package 2 51
shipping weight package 3 19
width 87.5
Environmental
lateral thrust 100 mph no ice 376
rated wind velocity no ice 155
temperature range -40 to 60
