Yagi Ant, 6 dBd, black anodized, wide band, 380-430 MHz
Yagi Ant, 6 dBd, black anodized, wide band, 380-430 MHz

SY303-STBSNF(ABK)

Yagi Ant, 6 dBd, black anodized, wide band, 380-430 MHz

Regular price $0.00
/

Only 0 items in stock!
• Rugged wide band 3-element yagi with 6 dBd gain
• Adapted for medium-gain applications
• Suitable for vertical or horizontal polarization
• Anodized for extended life and superior performance in harsh environments
Electrical
average input power max (W) 250
bandwidth (MHz) 50
connector N-Female
frequency range (MHz) 380 to 430
front to back ratio typ 14
gain nominal (dBd) 6
horizontal beamwidth vert pol 103
impedance (Ω) 50
lightning protection DC ground

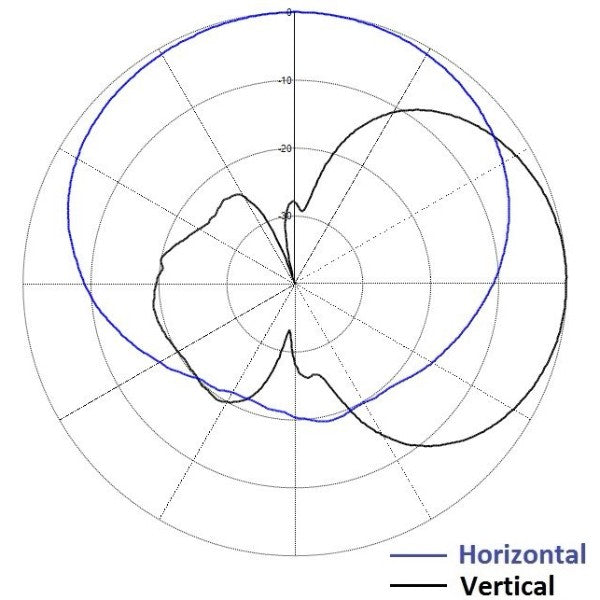

pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 4.5
base pipe diameter 0.84
boom diameter 0.84
depth (in) 5.1
finish anodize (black)
length height (in) 15.875
mounting hardware included Clamp115
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 20x17x5
Width (in) 13.72
Environmental
bending moment 100 mph no ice 4.86
lateral thrust 100 mph no ice 7.94
rated wind velocity no ice 215
temperature range (°C) -40 to 60
