Yagi Ant, center mount, 9.5 dBd, 108-118 MHz
Yagi Ant, center mount, 9.5 dBd, 108-118 MHz

SY206-SF10SNM(C)

Yagi Ant, center mount, 9.5 dBd, 108-118 MHz

Regular price $0.00
/

Only 0 items in stock!

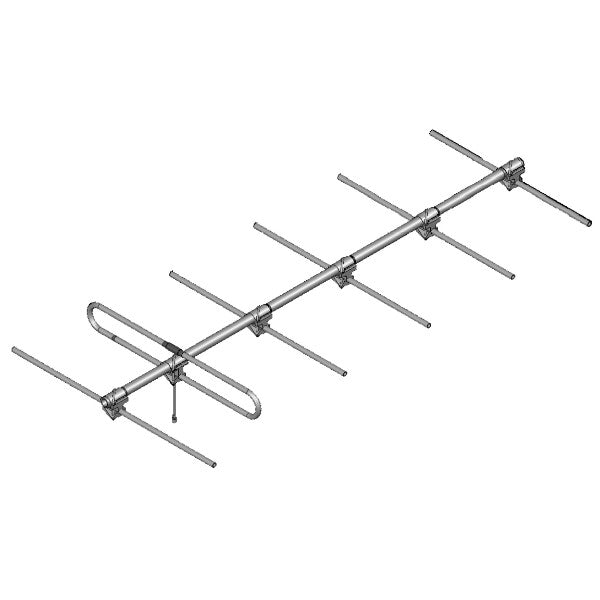

• Six element Yagi
• Center mount
• DC grounded for lightning protection
• End caps on the elements and directors
Electrical
average input power max (W) 200
bandwidth (MHz) 10
connector N-Male
frequency range (MHz) 108 to 118
front to back ratio typ 12
gain nominal (dBi) 9.5
horizontal beamwidth typ 48
impedance (Ω) 50
lightning protection DC ground
pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 59.5
depth (in) 6
length height (in) 109
mounting hardware included Clamp001
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 112x54x7
Width (in) 53
Environmental
bending moment 100 mph no ice 141
lateral thrust 100 mph no ice 120
rated wind velocity no ice 115
temperature range (°C) -40 to 60
