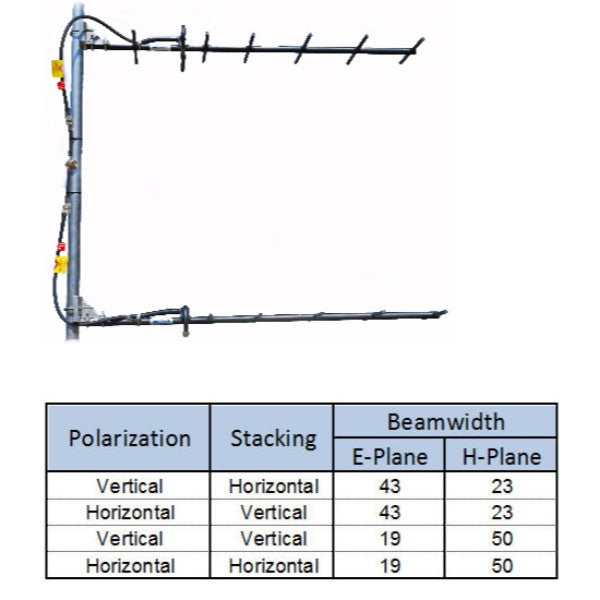

Yagi Ant, dual array, 12.5 dBd, black anodized, 430-450 MHz
Yagi Ant, dual array, 12.5 dBd, black anodized, 430-450 MHz

SY3072-SF2SNM(ABK)

Yagi Ant, dual array, 12.5 dBd, black anodized, 430-450 MHz

Regular price $0.00
/

Only 0 items in stock!
• Two rugged 7-element design optimized for 12.5 dBd gain
• 3/8 inch aluminum reflector/director elements with 360 degree welds
• Anodized for extended life and superior performance in harsh environments
Electrical
average input power max (W) 250
bandwidth (MHz) 20
connector N-Male
frequency range (MHz) 430 to 450
front to back ratio typ 20
gain nominal (dBd) 12.5
horizontal beamwidth typ 43
impedance (Ω) 50
lightning protection DC ground
pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 16
depth (in) 3
length height (in) 46.25
mounting configurations upright
mounting hardware included Clamp115
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 47x6x18
Width (in) 17.25
Environmental
bending moment 100 mph no ice 28.1
lateral thrust 100 mph no ice 36.4
survival wind velocity no ice 150
temperature range (°C) -40 to 60
