SY2062-SF1SNM(C)

Yagi Ant, dual array, center mount, 12 dBd, 148-155 MHz

Regular price $0.00
/

Only 0 items in stock!
• Dual stacked six element Yagi for higher gain
• Does not includes mounting pipe
• DC grounded for lightning protection

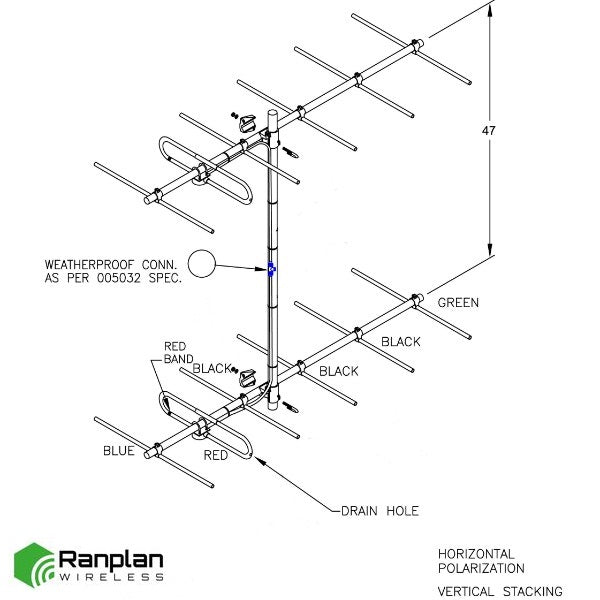

• Can be arranged horizontally or vertically stacked and horizontally or vertically polarized
Electrical
average input power max (W) 300
connector N-Male
frequency range (MHz) 148 to 155
front to back ratio typ 17
gain nominal (dBi) 12
lightning protection DC ground
pattern Directional
polarization vertical or horizontal
vswr max 1.5 : 1
Mechanical
actual shipping weight (lbs) 39
base pipe diameter 1.5
base pipe material aluminum
length height (in) 81
mounting hardware included Clamp001
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 127x8x7
Width (in) 5.9
Environmental
lateral thrust 100 mph no ice 69
rated wind velocity no ice 145
temperature range (°C) -40 to 60
