| Electrical | |
|---|---|
| average input power max (W) | 200 |
| bandwidth (MHz) | 36 |
| connector | N-Male |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 2.5 |
| horizontal beamwidth typ | 210 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

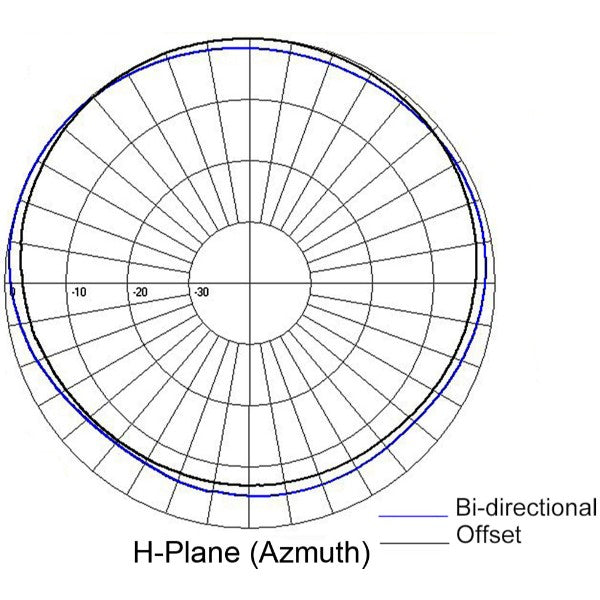

| pattern | Offset |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 15 |
| base pipe diameter | 1.9 |
| base pipe material | aluminum |
| depth (in) | 3 |
| length height (in) | 60 |
| mounting configurations | Universal Mount |
| radiating element material | aluminum |
| shipping dimensions (in) | 63x4x42 |
| Width (in) | 21 |
| Environmental | |
|---|---|
| connector weather seal boot | Times IPB-400 NM |
| lateral thrust 100 mph no ice | 43.1 |
| rated wind velocity no ice | 175 |
| temperature range (°C) | -40 to +60 |
