2 dipole, 4.0 dBd, bi-directional, low PIM, HD, 450-512 MHz
2 dipole, 4.0 dBd, bi-directional, low PIM, HD, 450-512 MHz

SD312-HF3P2LDF(D00)

2 dipole, 4.0 dBd, bi-directional, low PIM, HD, 450-512 MHz

Regular price $0.00
/

Only 0 items in stock!
• Covers 450-512 MHz frequency range
• 4.0 dBd with bi-directional pattern
• Heavy-duty wind ratings, low PIM, and 150W power handling
• Can be bottom or side mounted (Universal mount)
Electrical
average input power max (W) 150
bandwidth (MHz) 62
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range (MHz) 450 to 512
gain nominal (dBi) 4
impedance (Ω) 50
lightning protection DC ground

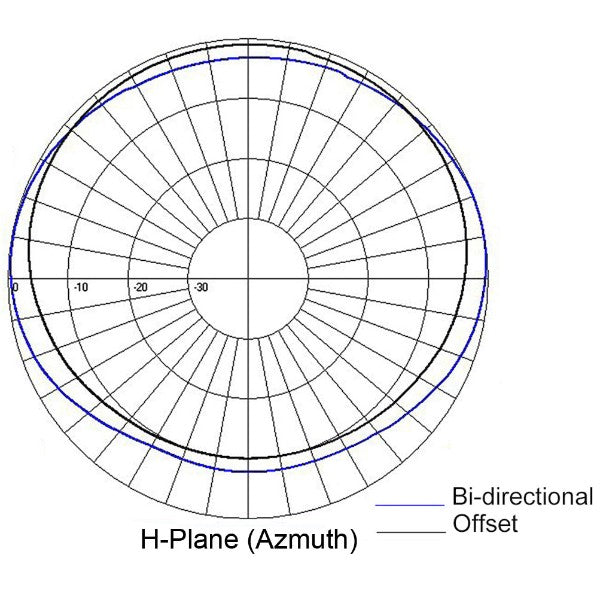

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 20
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth (in) 3.5
length height (in) 83.13
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 89x21x6
Width (in) 16.75
Environmental
bending moment 100 mph no ice 116
lateral thrust 100 mph no ice 40.5
rated wind velocity no ice 235
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.26
