2 dipole, 4.0 dBd, bi-directional, low PIM, HD, ABK, 406-470 MHz
2 dipole, 4.0 dBd, bi-directional, low PIM, HD, ABK, 406-470 MHz

SD312-HF2P2LDF(D00S-ABK)

2 dipole, 4.0 dBd, bi-directional, low PIM, HD, ABK, 406-470 MHz

Regular price $0.00
/

Only 0 items in stock!

• Covers 406-470 MHz frequency range 4.0 dBd with bi-directional pattern Heavy-duty wind ratings, low PIM, and 150W power handling Side mount, black anodized

Electrical
average input power max (W) 150
bandwidth (MHz) 64
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range (MHz) 406 to 470
gain nominal (dBd) 4
impedance (Ω) 50
lightning protection DC ground

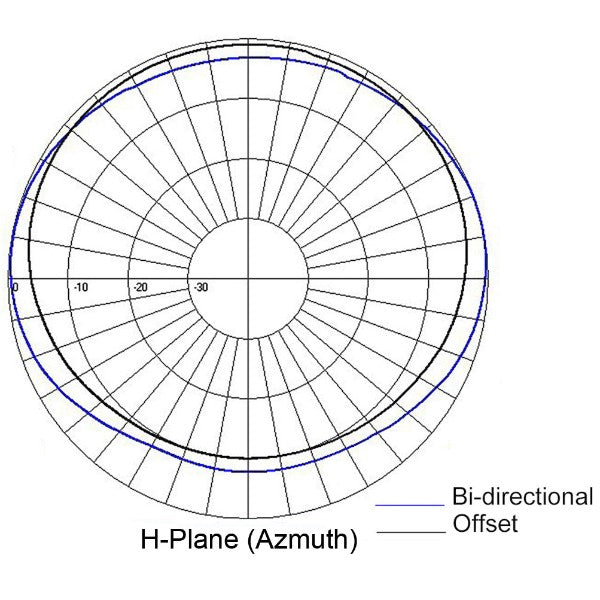

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 20
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth (in) 3.5
finish anodize (black)
length height (in) 83.13
mounting configurations side mount
radiating element material aluminum
shipping dimensions (in) 89x21x6
Width (in) 18.9
Environmental
bending moment 100 mph no ice 121.25
lateral thrust 100 mph no ice 42.1
rated wind velocity no ice 235
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.25
