2 dipole, 4.5 dBd, low PIM, bi-directional, HD, 190-225 MHz
2 dipole, 4.5 dBd, low PIM, bi-directional, HD, 190-225 MHz

SD212-HF3P2LDF(D00)

2 dipole, 4.5 dBd, low PIM, bi-directional, HD, 190-225 MHz

Regular price $0.00
/

Only 0 items in stock!
• 2-bay dipole antenna that covers the 190-225 MHz band
• 4.5 dBd gain with bi-directional pattern
• Can be top or side mounted (Universal Mount)
Electrical
average input power max (W) 250
bandwidth (MHz) 35
connector 7/16 DIN-Female
frequency range (MHz) 190 to 225
gain nominal (dBi) 4.5
impedance (Ω) 50
lightning protection DC ground

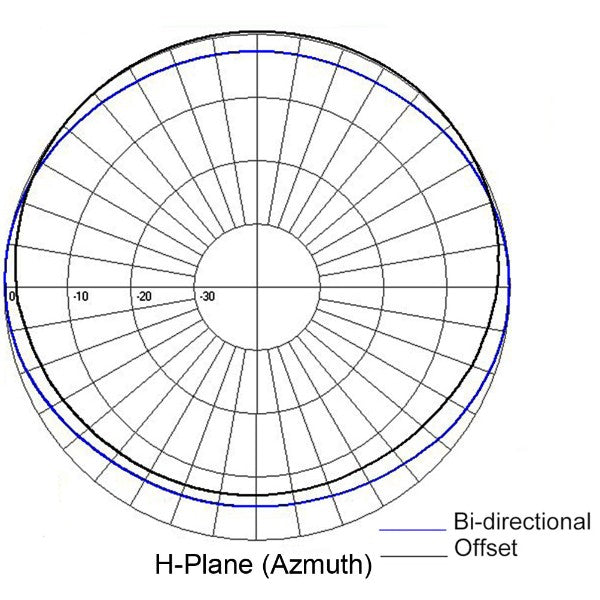

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 54
base pipe diameter 2.38
base pipe material aluminum
depth (in) 3.5
length height (in) 100
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 105x44x5
Width (in) 34
Environmental
bending moment 100 mph no ice 208
lateral thrust 100 mph no ice 67
rated wind velocity no ice 195
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.4
