2 dipole, 4.5 dBd, offsetl, low PIM, HD, 406-470 MHz
2 dipole, 4.5 dBd, offsetl, low PIM, HD, 406-470 MHz

SD312-HF2P4LDF(D00)

2 dipole, 4.5 dBd, offsetl, low PIM, HD, 406-470 MHz

Regular price $0.00
/

Only 0 items in stock!
• Covers 406-470 MHz frequency range
• 4.5 dBd with offset pattern
• Heavy-duty wind ratings, low PIM, and 150W power handling
• Can be bottom or side mounted (Universal mount)
Electrical
average input power max (W) 150
bandwidth (MHz) 64
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range (MHz) 406 to 470
gain nominal (dBd) 4.5
horizontal beamwidth typ 185
impedance (Ω) 50
lightning protection DC ground

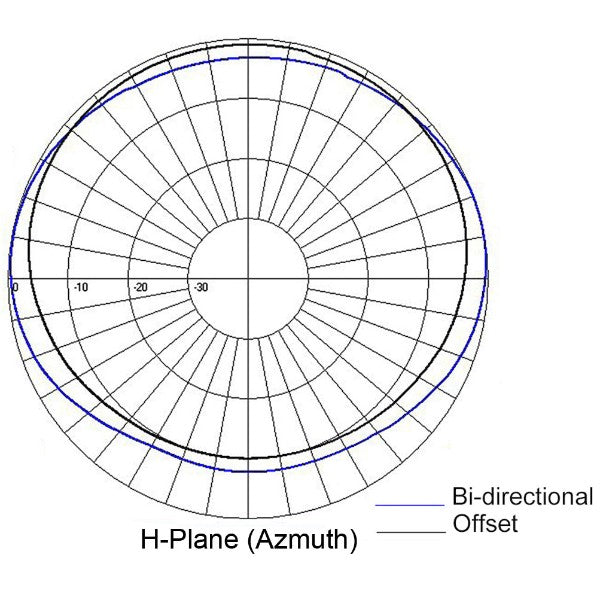

pattern Offset
polarization vertical
Mechanical
actual shipping weight (lbs) 20
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth (in) 3.5
length height (in) 83.13
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 89x21x6
Width (in) 12.25
Environmental
bending moment 100 mph no ice 105
lateral thrust 100 mph no ice 37.2
rated wind velocity no ice 245
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.22
