2 dipole, 5.0 dBd, bi-directional, 190-225 MHz
2 dipole, 5.0 dBd, bi-directional, 190-225 MHz

SD212-SF3P2SNF(C0.5)

2 dipole, 5.0 dBd, bi-directional, 190-225 MHz

Regular price $0.00
/

Only 0 items in stock!
2-bay dipole that covers the 190-225 MHz band with a 6 inch pigtail 5 dBd gain with bi-directional pattern Antenna can be either top or side mounted. 250 W power handling
Performance Features
low pim certified No
pip certified No
Antenna Type
collinear No
corner reflector No
enclosed dipole No
exposed dipole Yes
ground No
panel No
stealth No
transportation No
whip No
yagi No
Mechanical
actual shipping weight 35
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth 3
length height 100
mounting configurations universal
mounting hardware optional Clamp005, Clamp015, or Clamp130
radiating element material aluminum
shipping dimensions 103x35x4
width 16.9
Electrical
average input power max 250
bandwidth 35
connector N-Female
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range 190 to 225
gain nominal 5
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

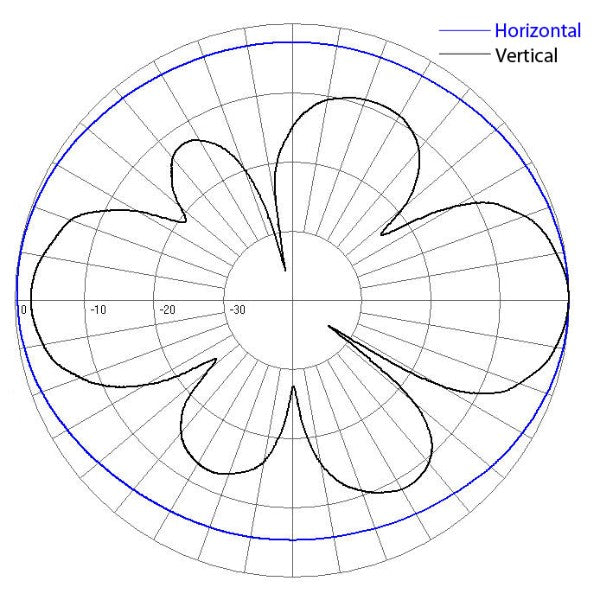

pattern Bi-directional
polarization vertical
vertical beamwidth typ 33
