2 dipole 5 dBd, bi-directional, N-Male, HD, 300-380 MHz
2 dipole 5 dBd, bi-directional, N-Male, HD, 300-380 MHz

SD312-HF5P2SNM(D00)

2 dipole 5 dBd, bi-directional, N-Male, HD, 300-380 MHz

Regular price $0.00
/

Only 0 items in stock!
• Covers 300-380 MHz frequency range
• 5 dBd gain with bi-directional pattern
• Heavy duty with 150W power handling
• Can be bottom or side mounted (Universal mount)
Electrical
average input power max (W) 150
bandwidth (MHz) 80
connector N-Male
electrical tilt available 0,2,4,6,8, or 10 degrees
frequency range (MHz) 300 to 380
gain nominal (dBd) 5
impedance (Ω) 50
lightning protection DC ground

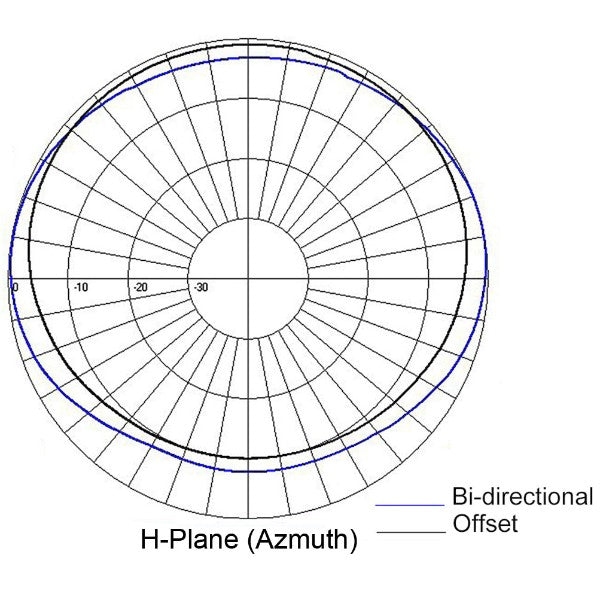

pattern Bi- directional
polarization vertical
Mechanical
actual shipping weight (lbs) 20
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth (in) 3.5
length height (in) 80
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 85x27x5
Width (in) 21
Environmental
bending moment 100 mph no ice 93
lateral thrust 100 mph no ice 42.8
rated wind velocity no ice 230
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.22
