4 dipole, 8.0 dBd, bi-directional, N-Male, 195-245 MHz
4 dipole, 8.0 dBd, bi-directional, N-Male, 195-245 MHz

SD214-SF3P2SNM(D00)

4 dipole, 8.0 dBd, bi-directional, N-Male, 195-245 MHz

Regular price $0.00
/

Only 0 items in stock!
• Covers 118-245 MHz in 3 band splits
• 8.0 dBd gain with bi-directional pattern
• 250 Watts power handling
• Can be top or side mounted (Universal Mount)
Electrical
average input power max 250
connector N-Male
electrical tilt available 0,2,4,6, or 8 degrees
frequency range 195 to 245
gain nominal 8
impedance 50
input vswr max 1.5 : 1
lightning protection DC ground

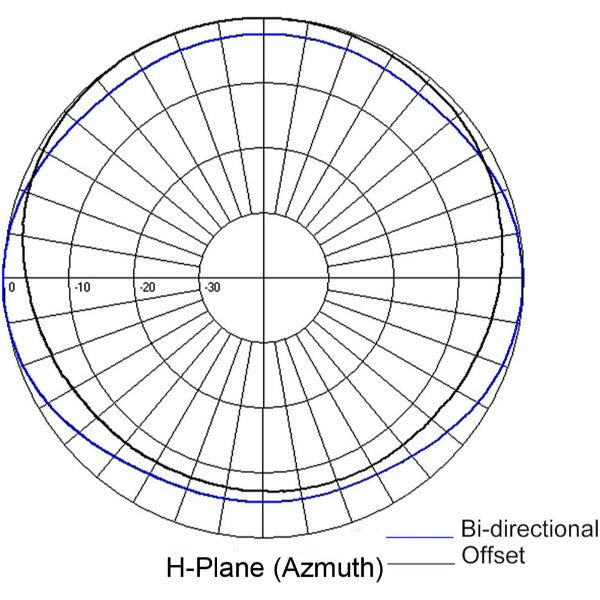

pattern Bi-directional
polarization vertical
vertical beamwidth typ 18
Mechanical
actual shipping weight 73
base pipe diameter 2.38
base pipe material aluminum
depth 6
length height 180
mounting configurations Universal Mount
mounting hardware optional Clamp005, Clamp015, or Clamp130
radiating element material aluminum
shipping dimensions 187x36x6
width 32.5
Environmental
bending moment 100 mph no ice 661
lateral thrust 100 mph no ice 124
rated wind velocity no ice 140
temperature range -40 to 60
tip deflection 100 mph no ice 1.5
