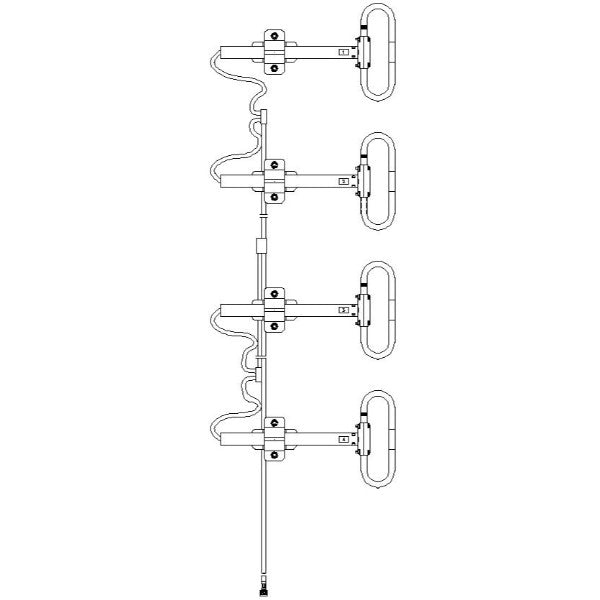

4 dipole antenna, 8/ 8.5 dBd, no mast, ABK, HD, 336-405 MHz
4 dipole antenna, 8/ 8.5 dBd, no mast, ABK, HD, 336-405 MHz

SD314-HF4PASNM(D00-LMABK)

4 dipole antenna, 8/ 8.5 dBd, no mast, ABK, HD, 336-405 MHz

Regular price $0.00
/

Only 0 items in stock!
• Field adjustable 8.5 dBd with offset, 8 dBd gain with bi-directional pattern
• Less Mast (Mechanical calculations made using a mast)
• 500 Watts power handling, Black anodized
• Covers entire 336-405 MHz frequency range
Electrical
average input power max (W) 500
connector N-Male
frequency range (MHz) 336 to 405
gain nominal (dBd) 8.5

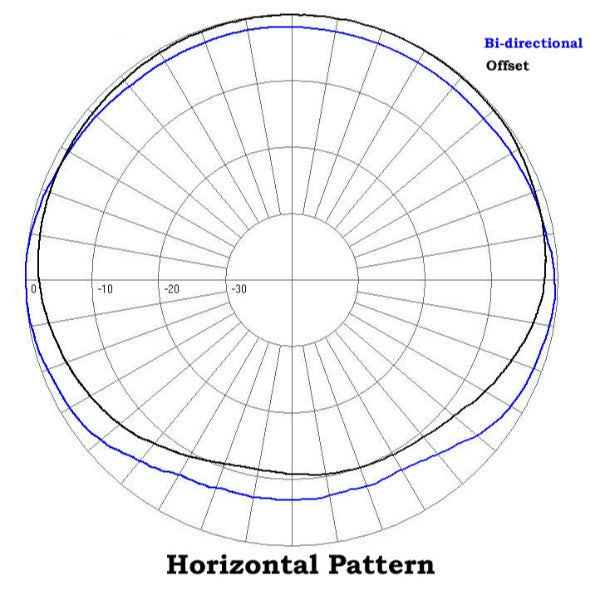

horizontal beamwidth typ 210
impedance (Ω) 50
lightning protection DC ground
pattern Offset/ Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 40
finish anodize (black)
length height (in) 120
mounting configurations Universal Mount
radiating element material aluminum
shipping dimensions (in) 23x22x17
Width (in) 16.5
Environmental
lateral thrust 100 mph no ice 46
rated wind velocity no ice 185
temperature range (°C) -40 to 70
