Aviation band, 1 dBi, single feed cable, HD, 118-138 MHz
Aviation band, 1 dBi, single feed cable, HD, 118-138 MHz

SC6172E Series

Aviation band, 1 dBi, single feed cable, HD, 118-138 MHz

Regular price $0.00
/

Only 0 items in stock!

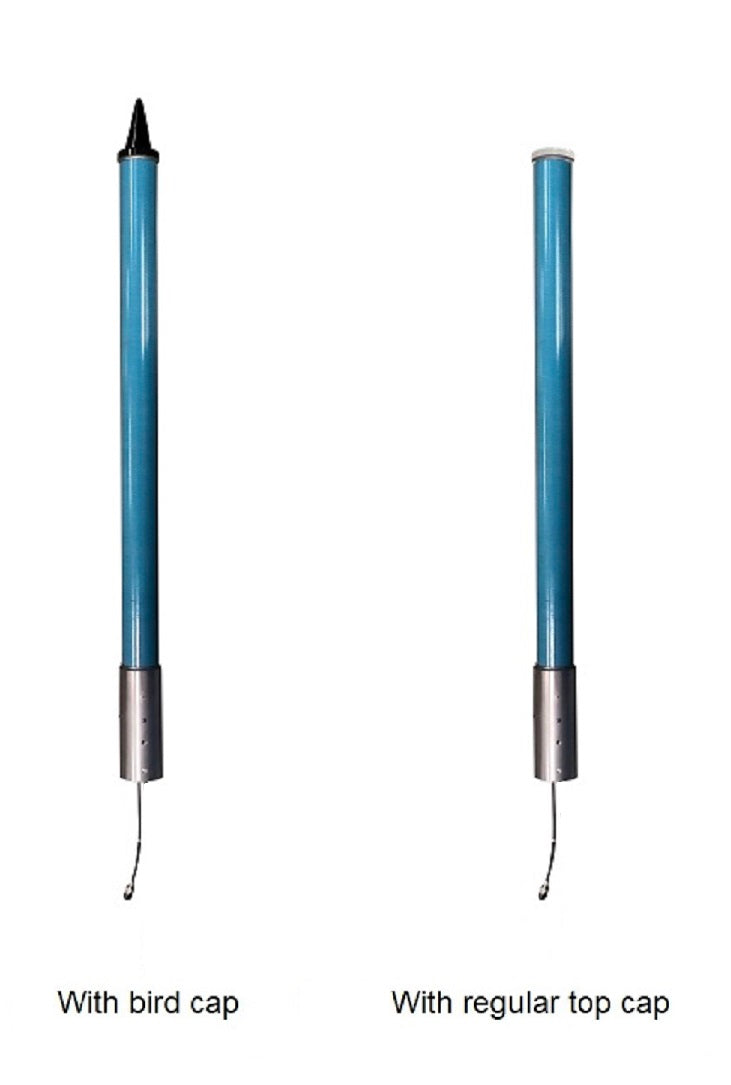

Heavy-duty fiberglass radome

• Ideal for severe weather conditions

• Extended temperature range for harsh environment

• Single feed cable

Electrical
Average Input Power (max) 250
Bandwidth 20
Connector N-Female
Frequency Range 118 to 138
Gain (nominal) -1.1
Impedance 50
Input VSWR (max) 2:1
Lightning Protection DC ground
Number of Ports 2

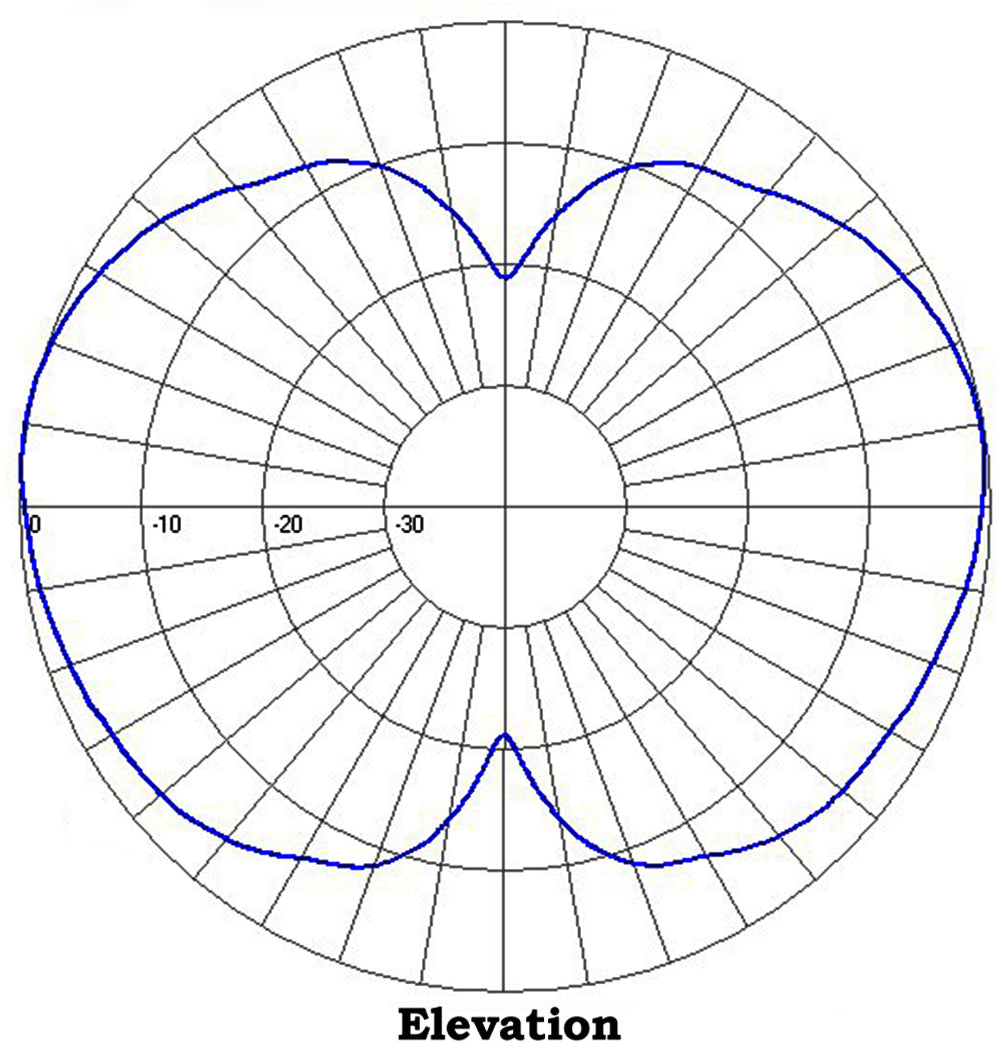

Pattern omni-directional
Polarization Vertical
Vertical Beamwidth (typ) 75
Mechanical
Base pipe diameter 4
Radome Material Fiberglass (UV-protected)
Weight 19
Environmental
Temperature Range -55 to 60
