Combiner, 10" cavities, 2-CH, 0.06 MHz Sep, 148-174 MHz
Combiner, 10" cavities, 2-CH, 0.06 MHz Sep, 148-174 MHz

CT2150F-3

Combiner, 10" cavities, 2-CH, 0.06 MHz Sep, 148-174 MHz

Regular price $0.00
/

Only 0 items in stock!

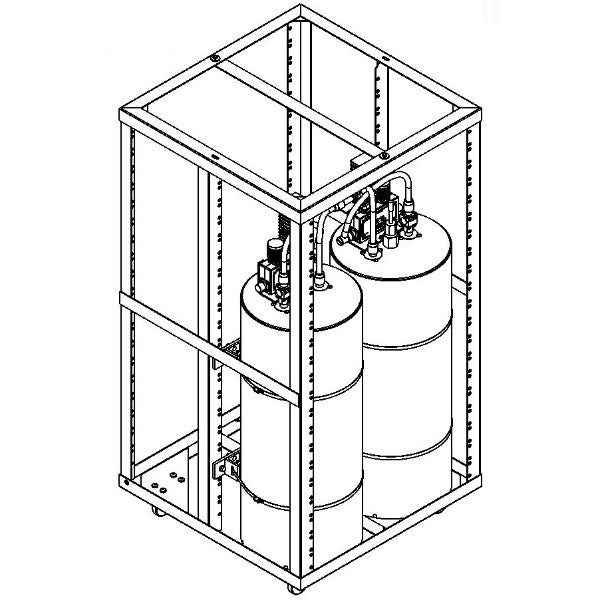

• 2 channel combiner with dual stage isolators and 10" high Q bandpass cavity for each channel
• Can be tuned over the 148-174 MHz frequency band
• Cavities are mounted in Sinclairs Open Frame Rack
Electrical
frequency range 148 to 174
impedance 50
input connectors N-Female
input vswr max 1.25 : 1
isolation antenna to tx 60
isolation tx to tx 70
number of channels 2
output connectors N-Female
output vswr 1.5 : 1
Mechanical
depth 21
finish chemical conversion
length height 38
shipping dimensions 21x21x42
width 21
Environmental
temperature range -30 to 60
