Combiner, 3 CH, 7" cavities, single stage isolator, 406-512 MHz
Combiner, 3 CH, 7" cavities, single stage isolator, 406-512 MHz

TJ3113

Combiner, 3 CH, 7" cavities, single stage isolator, 406-512 MHz

Regular price $0.00
/

Only 0 items in stock!

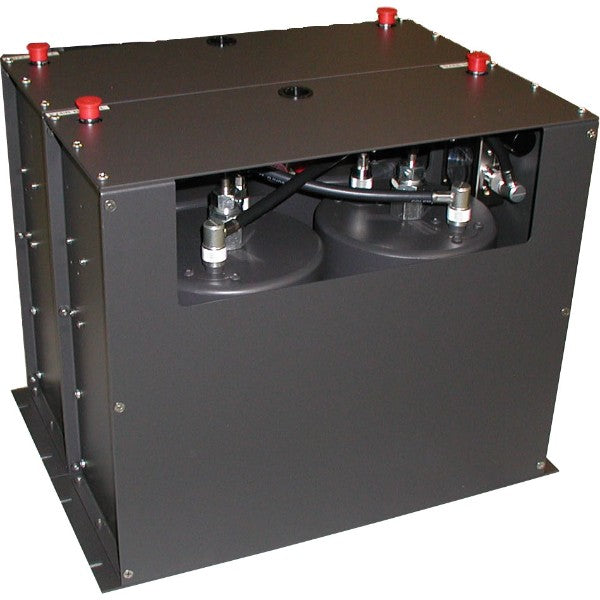

• Three channel cavity-ferrite combiner in compact configuration, 406-512 MHz.
• Single low-loss isolator
• High Q bandpass cavity filters
Electrical
average input power max (W) 125
frequency range (MHz) 406 to 512
impedance (Ω) 50
input connectors N-Female
isolation antenna to tx 25
isolation antenna to tx (dB) 25
isolation tx to tx 35
isolation tx to tx (dB) 35
number of channels 3
output connectors N-Female
output vswr 2:01
Mechanical
actual shipping weight (lbs) 60
depth (in) 15.3
length height (in) 12.25
mounting configurations 19 inch rack
shipping dimensions (in) 26x19x7
Width (in) 19
Environmental
temperature range (°C) -30 to 60
