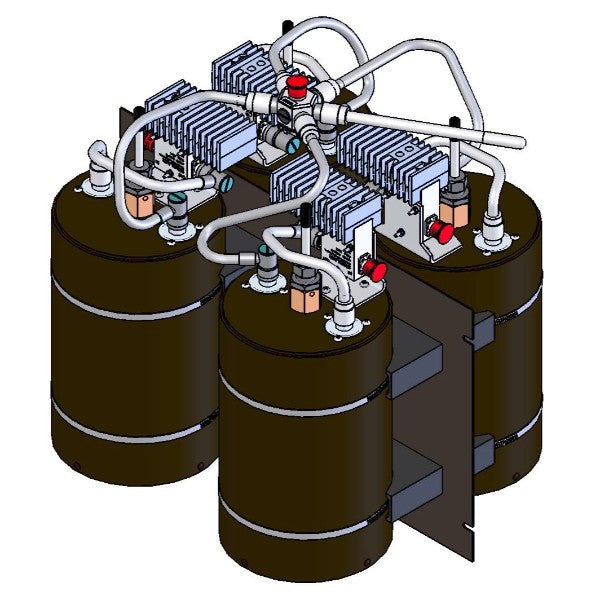

Combiner, 4 CH, 7" cavities, 459-512 MHz
Combiner, 4 CH, 7" cavities, 459-512 MHz

TJ3114-R-5

Combiner, 4 CH, 7" cavities, 459-512 MHz

Regular price $0.00
/

Only 0 items in stock!
• Low loss broad band single stage isolators
• Allows for minimum Tx-Tx spacings of 200 KHz
• Expandable for more channels
• Uses high Q 1/4 wave bandpass cavity filters
• Panel mount
Electrical
cavity electrical length 04-Jan
frequency range 459 to 512
impedance 50
input connectors N-Female
input vswr max 1.25 : 1
insertion loss typ tx to ant 3.3
isolation antenna to tx 25
isolation tx to tx 35
number of channels 4
output connectors N-Female
output vswr 2:01
Mechanical
actual shipping weight 53
depth 14.8
length height 15.3
mounting configurations 19 inch rack
shipping dimensions 20x16x21
width 19
Environmental
temperature range -30 to 60
