Dual 1 dipole antennas, 1.5 dBd, bi-directional, HD, ABK, 406-470 MHz
Dual 1 dipole antennas, 1.5 dBd, bi-directional, HD, ABK, 406-470 MHz

SD310D-HF2P2LDF(B-ABK)

Dual 1 dipole antennas, 1.5 dBd, bi-directional, HD, ABK, 406-470 MHz

Regular price $0.00
/

Only 0 items in stock!
• Two single dipole antennas that cover 406-470 MHz
• 1.5 dBd gain with bi-directional pattern
• Heavy duty with 75W power handling
• Top mount and black anodized
Electrical
average input power max (W) 75
bandwidth (MHz) 64
connector 7/16 DIN-Female
frequency range (MHz) 406 to 470
front to back ratio typ 9
gain nominal (dBi) 1.5
impedance (Ω) 50
isolation port to port min 30
lightning protection DC ground

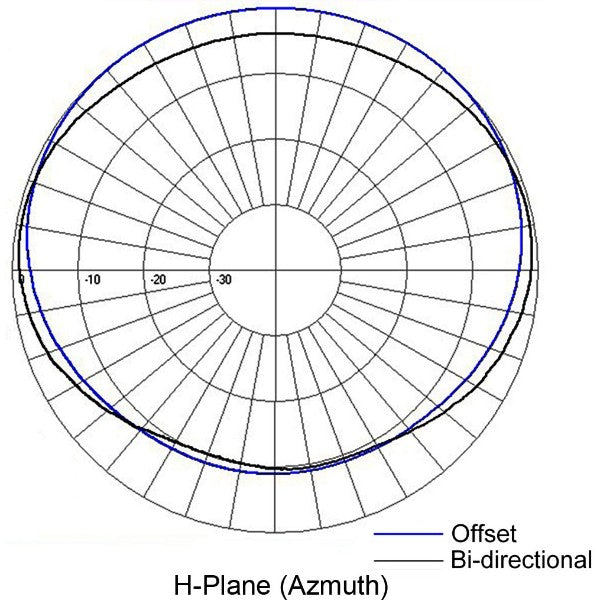

pattern Bi- directional
polarization vertical
vswr max 1.5 : 1
Mechanical
actual shipping weight (lbs) 20
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 24
depth (in) 3.5
finish anodize (black)
length height (in) 80
mounting configurations top mount
radiating element material aluminum
shipping dimensions (in) 83x20x5
Width (in) 17.5
Environmental
bending moment 100 mph no ice 77
lateral thrust 100 mph no ice 39
rated wind velocity no ice 240
temperature range (°C) -40 to 60
