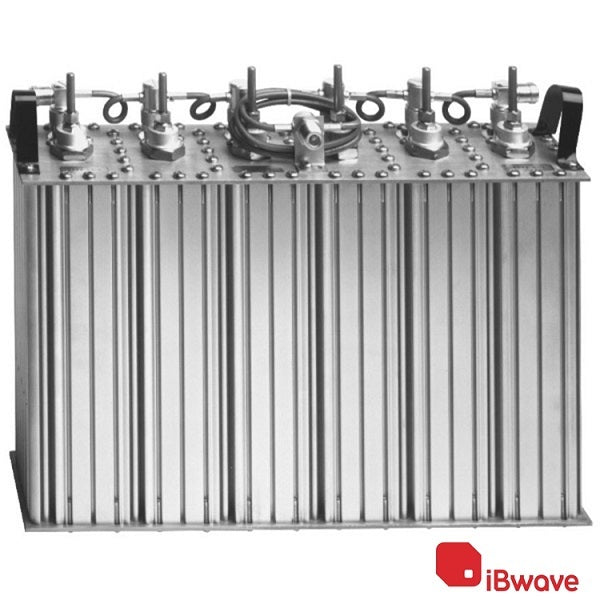

Duplexer, Q-Circuit, compact, 6 cavity, rack mount, 450-470 MHz
Duplexer, Q-Circuit, compact, 6 cavity, rack mount, 450-470 MHz

Q3330C-2

Duplexer, Q-Circuit, compact, 6 cavity, rack mount, 450-470 MHz

Regular price $0.00
/

Only 0 items in stock!
• Typical minimum isolation of 85 dB at maximum insertion loss of 1.2 dB
5 MHz minimum Tx-Rx separation
Rugged Res-Lok design reduces inter-cavity cabling
Electrical
average input power max (W) 350
connectors N-Female
frequency range (MHz) 450 to 470
impedance (Ω) 50
isolation (min) (dB) 85
number of cavities rx side 3
number of cavities tx side 3
Mechanical
actual shipping weight (lbs) 25
depth (in) 16.3
finish chemical conversion
length height (in) 4.2
mounting configurations 19 inch rack
shipping dimensions (in) 19x8x22
Width (in) 19
Environmental
temperature range (°C) -40 to 60
