Exposed dipole, 3 dBd/5.5 dBd, field adj, N-Male, HD, 406-512MHz
Exposed dipole, 3 dBd/5.5 dBd, field adj, N-Male, HD, 406-512MHz

SD335-HF1PASNM(D00B)

Exposed dipole, 3 dBd/5.5 dBd, field adj, N-Male, HD, 406-512MHz

Regular price $0.00
/

Only 0 items in stock!
• 3 dBd gain in Omni-directional configuration; 5.5 dBd in bi-directional configuration
• Broadband covering entire 406-512 MHz frequency range
• 300 Watt power handling
• Bottom mount
Electrical
average input power max (W) 300
connector N-Male
frequency range (MHz) 406 to 512
gain nominal (dBd) 5.5
impedance (Ω) 50
lightning protection DC ground

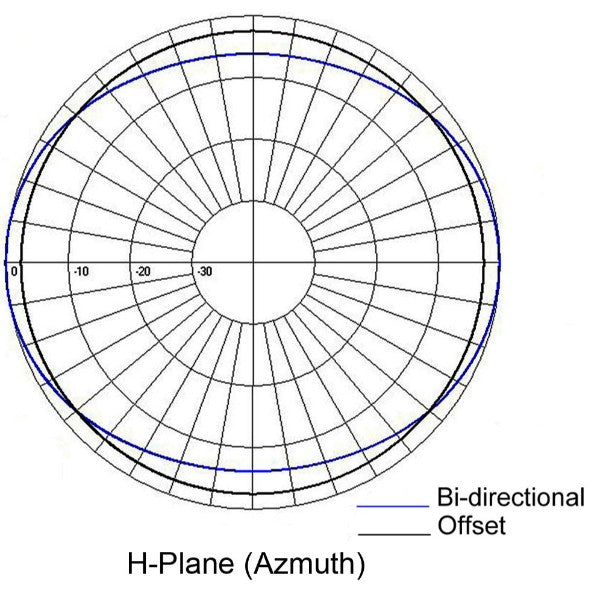

pattern Omni or Bi-directional, Adjustable
polarization vertical
Mechanical
actual shipping weight (lbs) 27
base pipe diameter 2.375
base pipe material aluminum
base pipe mounting length 24
depth (in) 15.75
length height (in) 96
mounting configurations Bottom mount
radiating element material aluminum
shipping dimensions (in) 101x19.2x7.2
Width (in) 15.75
Environmental
bending moment 100 mph no ice 203
lateral thrust 100 mph no ice 71
rated wind velocity no ice 205
temperature range (°C) -40 to 60
